^ Cuta7
1
/
2

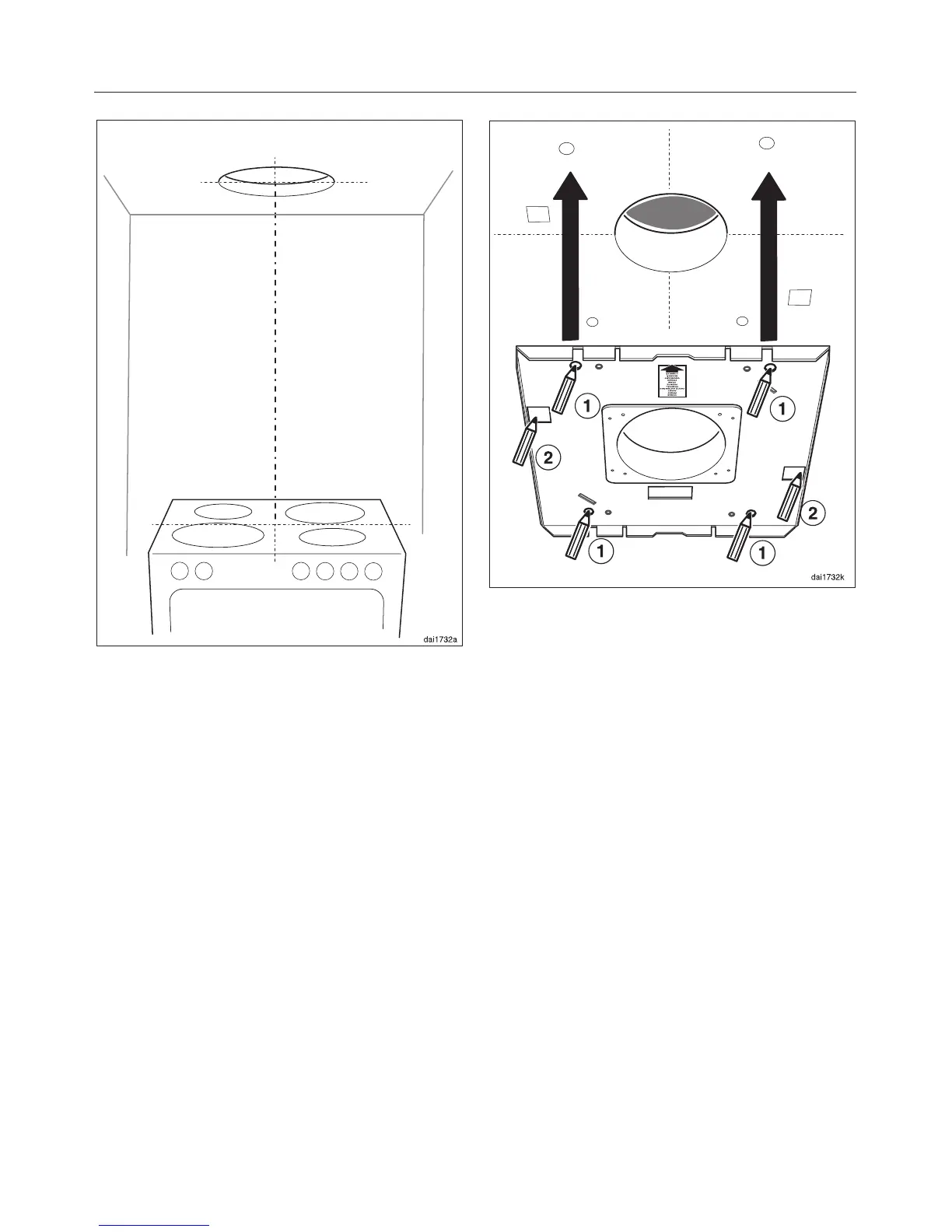

" (190 mm) hole in the
ceiling centered over the cooktop for
the exhaust duct to pass through.
The exhaust connection has a 6"
(150 mm) diameter.
^ Hold the mounting plate up to the
ceiling so that the orange arrow faces
the front of the hood and aligns with
the line drawn on the ceiling.
^ Mark the position of the four
mounting bolts, a, for securing the
mounting plate.
^
Determine the position of the hole the
power cord, b, will pass through.
Select the hole providing the shortest
route for the power cable, b,to
reach the power terminal located at
the top of the hood’s chimney.
^
Feed the ductwork and power cable
through their respective holes in the
ceiling.
Installation
