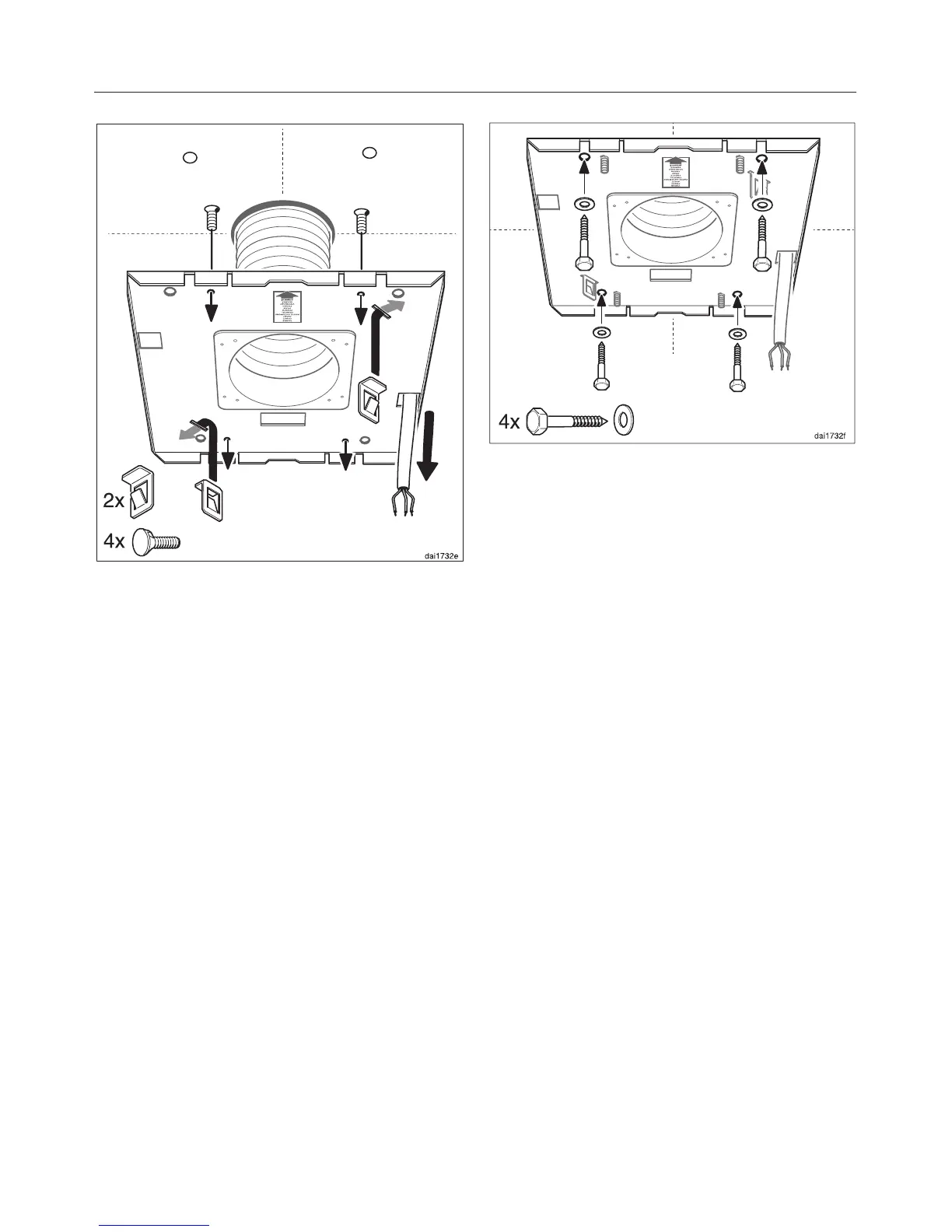

^ Insert the short edge of the two
spring clips into their slots from
below and pivot them 90° so that the
tab faces the center of the mounting
plate.
^ Pull the power cord through the
mounting plate.
^
Insert the four flat head screws
M6x20into the recessed holes from
above.
^
Tape the screws from above to
prevent them from being pushed
upwards when the nuts are
tightened.
^
Screw the mounting plate through the
ceiling and into the structural framing
using8x60screws and washers.
Once tight, make sure that the
mounting plate can safely support
the weight of the hood.
Installation
30
