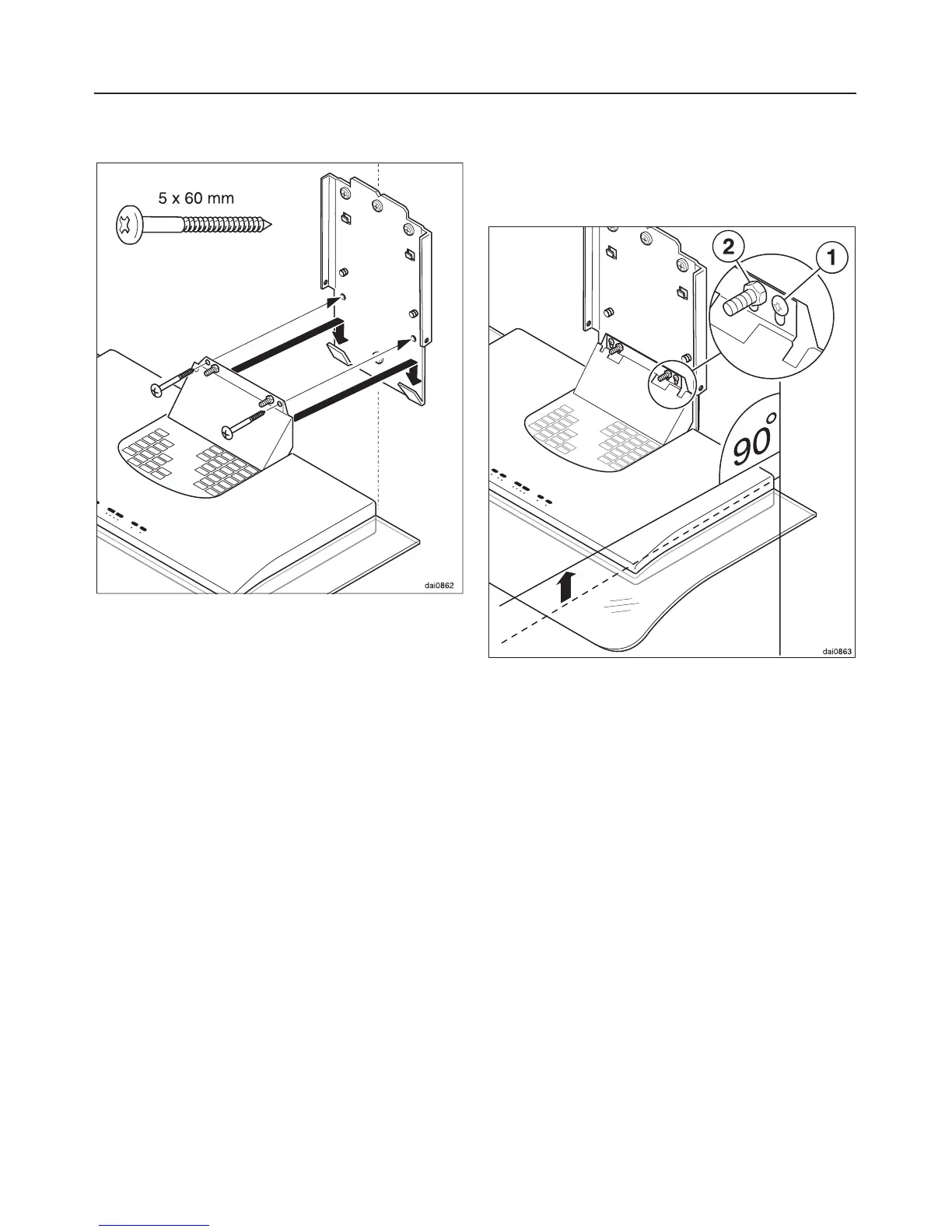

Attaching the canopy
^ Hang the canopy on the angled
brackets on retaining plate A.
^ Secure the canopy with two screws
5 x 60 mm.
Adjusting the canopy
If the canopy is not perpendicular to the
wall it can be adjusted.
^ Loosen the two securing screws, a.
^ Slightly loosen the adjusting screws,
b.
^
Adjust the canopy so that it is level
and perpendicular to the wall.
^
Tighten the adjusting screws, b and
the securing screws, a.
Installation
31
