a 2 recirculation vents
(recirculation mode only)
b 2 protective shields
prevent scratches to the chimney
during installation.
c 1 diverter
(recirculation mode only)
d 1 flex hose for connecting the
diverter to the exhaust connection.
e 2 hose clips for securing the
ducting.
f 1 reducing collar
for use with 5" (125 mm) exhaust
ducting.
g 1 non-return flap for vented air
extraction only.
h Upper retaining plate B secures
the chimney extension.
i Middle retaining plate C for
additional stability of the chimney.
j Lower retaining plate A secures
the canopy and motor assembly.
Caution: During the installation
process, please be careful of sharp
edges that can cause harm.

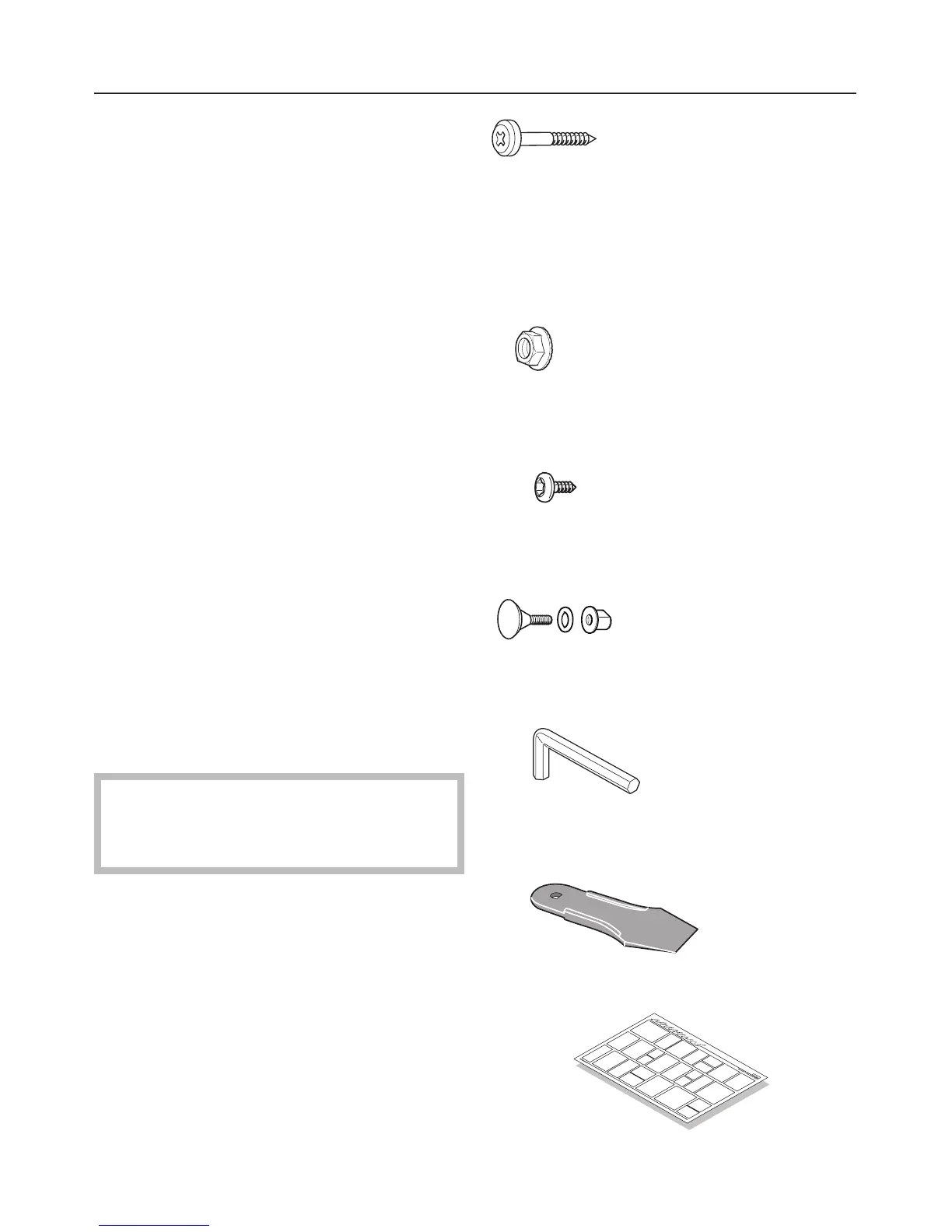

8 large headed screws 5 x 40 mm
for securing the retaining plates and the
canopy.
(S8 wall anchors included in the
packaging are not for use in USA / CDN.)
2 M 6 locking nuts for securing the
motor assembly.
2 screws 3.9 x 7.5 mm for securing the
chimney.
2 screws M4 with locking nuts for
securing the glass canopy.
1 allen wrench
for adjusting the unit height
1 lever for disassembling the chimney
Installation instruction sheet
Installation accessories
27
