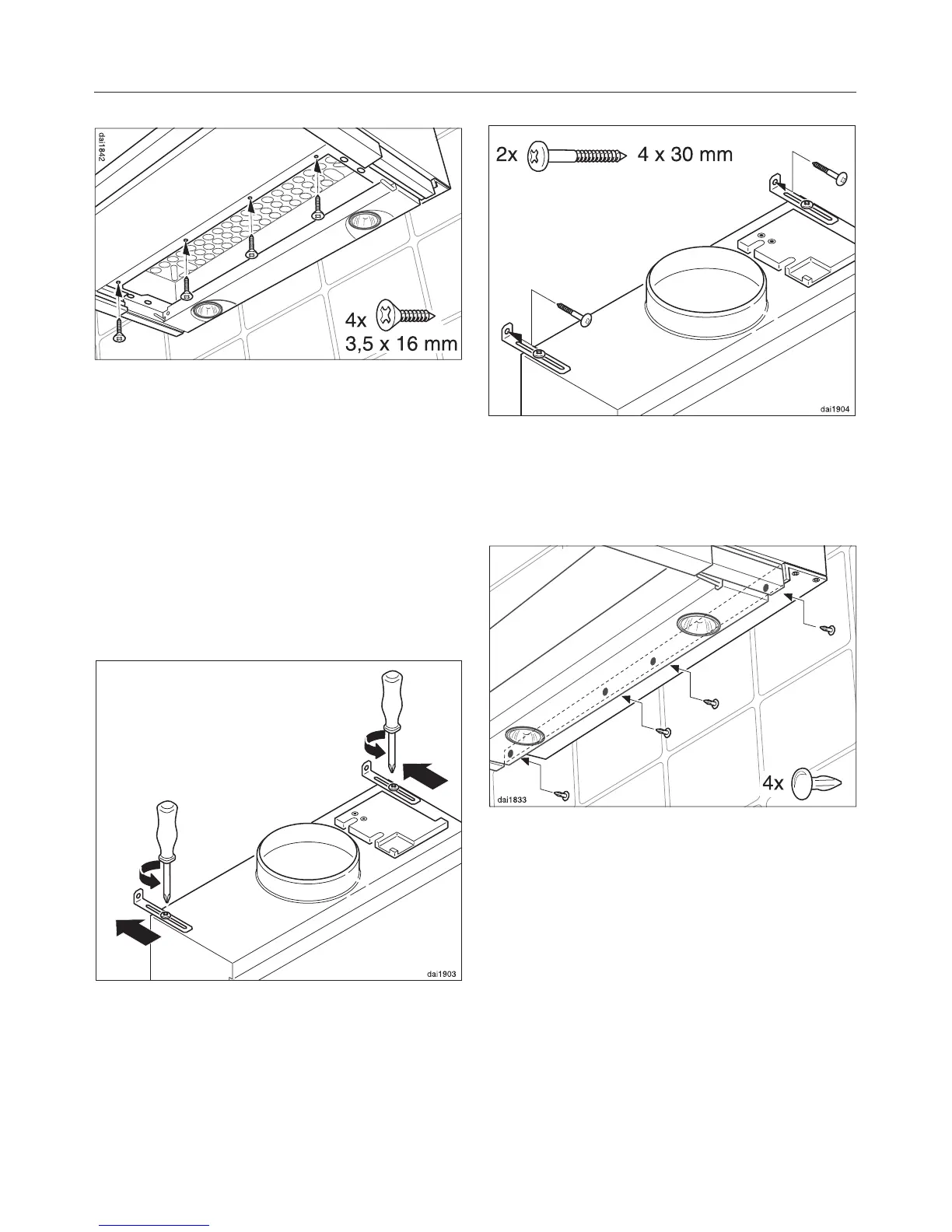

Secure the front of the appliance to
the floor of the housing unit from
below using 4 screws.
To avoid damaging the deflector plate
when it is pulled out, care should be
taken to screw the fixing screws in
straight, and to ensure that the
screwheads are countersunk.
^ Only for Australia;
wall housing unit without floor:
^
Loosen the screws of the fixing
brackets on the top of the appliance.
^
Push the brackets flush to the wall
or the cabinet back wall.
^
Drill respective holes and screw
the fixing brackets to the wall or the
cabinet rear wall. Tighten the screws
to the casing.
^
Secure the spacer strip to the back of
the appliance from behind using
4 plastic rivets as shown.
Installation
24
