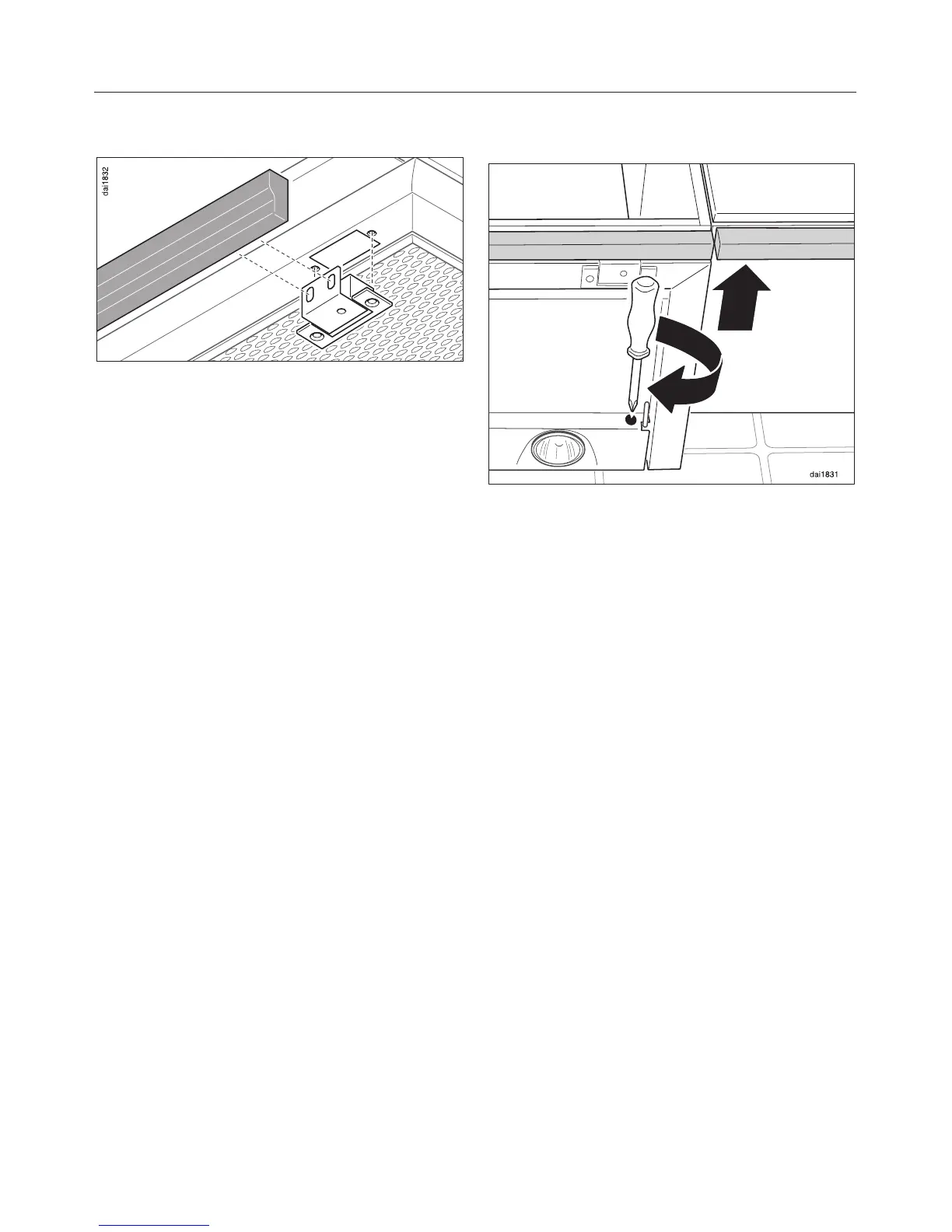

Attaching the lightshield
^
Attach the lightshield (if using).
A DML 300 installation kit, available as
an optional accessory, is required for
this. This installation kit is supplied with
the DFB lightshield. Follow the
installation instructions supplied.
Weight of a lightshield matching
existing furniture
The lightshield must not exceed 1300 g
in weight.
This applies to lightshields with a depth
of up to 30 mm.
For larger or heavier lightshields, the
weight must be reduced by e.g.
trimming it down at the back.
Aligning the deflector plate
^ The position of the deflector plate
can be brought forward by up to
50 mm using the adjusting screws on
either side of the deflector plate.
Align the deflector plate to the front of
the kitchen furniture units on either
side.
Installation
25
