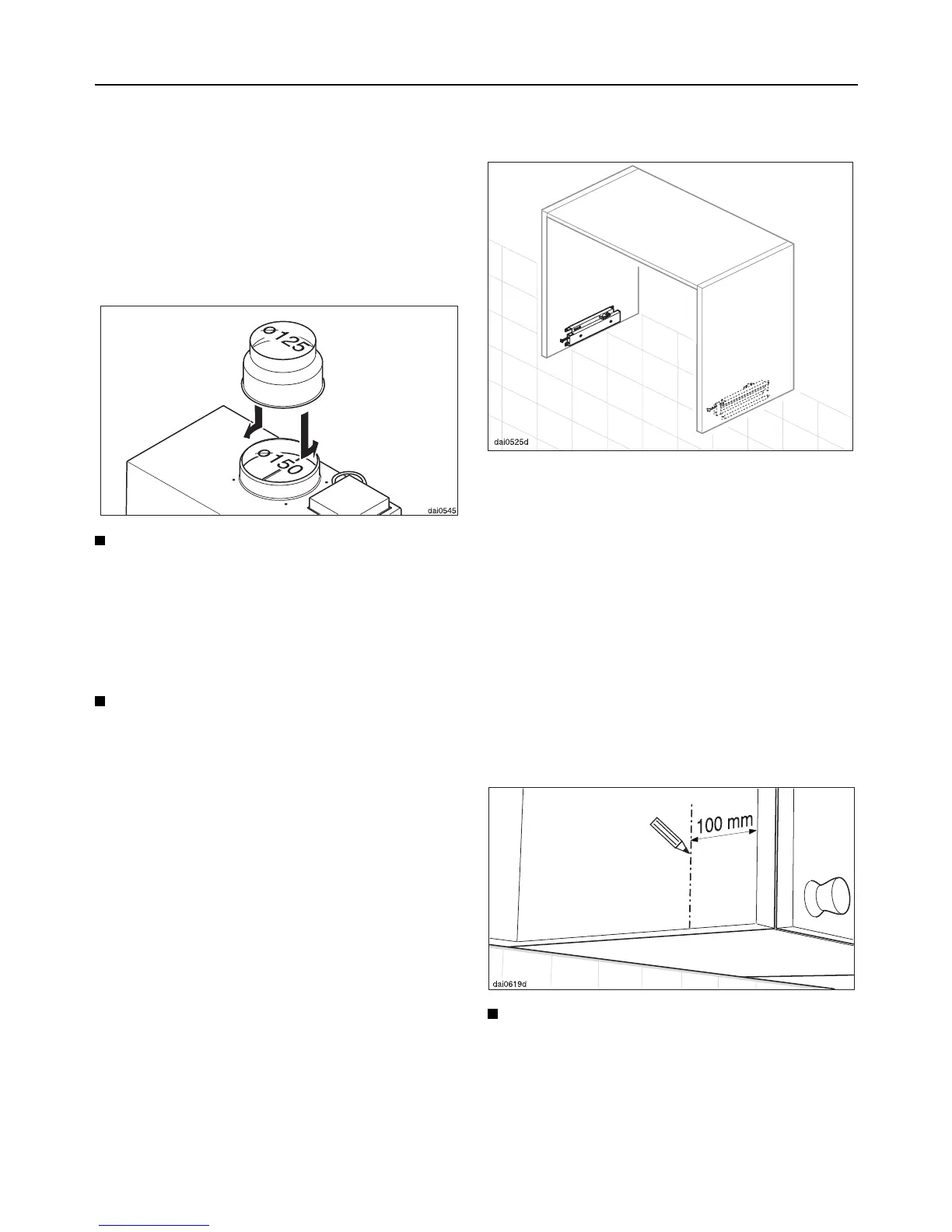

2. Reducing collar
Air extraction
The appliance is designed for vent
ducting ø 150 mm.
If ø 125 mm is required:
Place the reducing collar supplied
on the vent socket and turn it to se-
cure it in position (see “Connection
for air extraction”).
Recirculation
Place the reducing collar for ø 125
mm on the vent socket as described
previously.
3. Runners
Now fit the two runners into the wall unit.
If the appliance is being installed in a
70 cm or 90 cm wide wall unit the run-
ners are fitted with the spacer blocks.
Position the runners
The positioning will depend on the type
of lightshield being fitted.
Appliance fitted with a DFB lightshield:
(Supplied as standard in Australia)
Draw a vertical line approx. 20 cm
long on both the left and right sides
of the wall unit 100 mm in from the
front edge (see illustration).
