Installing in a 70 or 90 cm wide wall
unit:

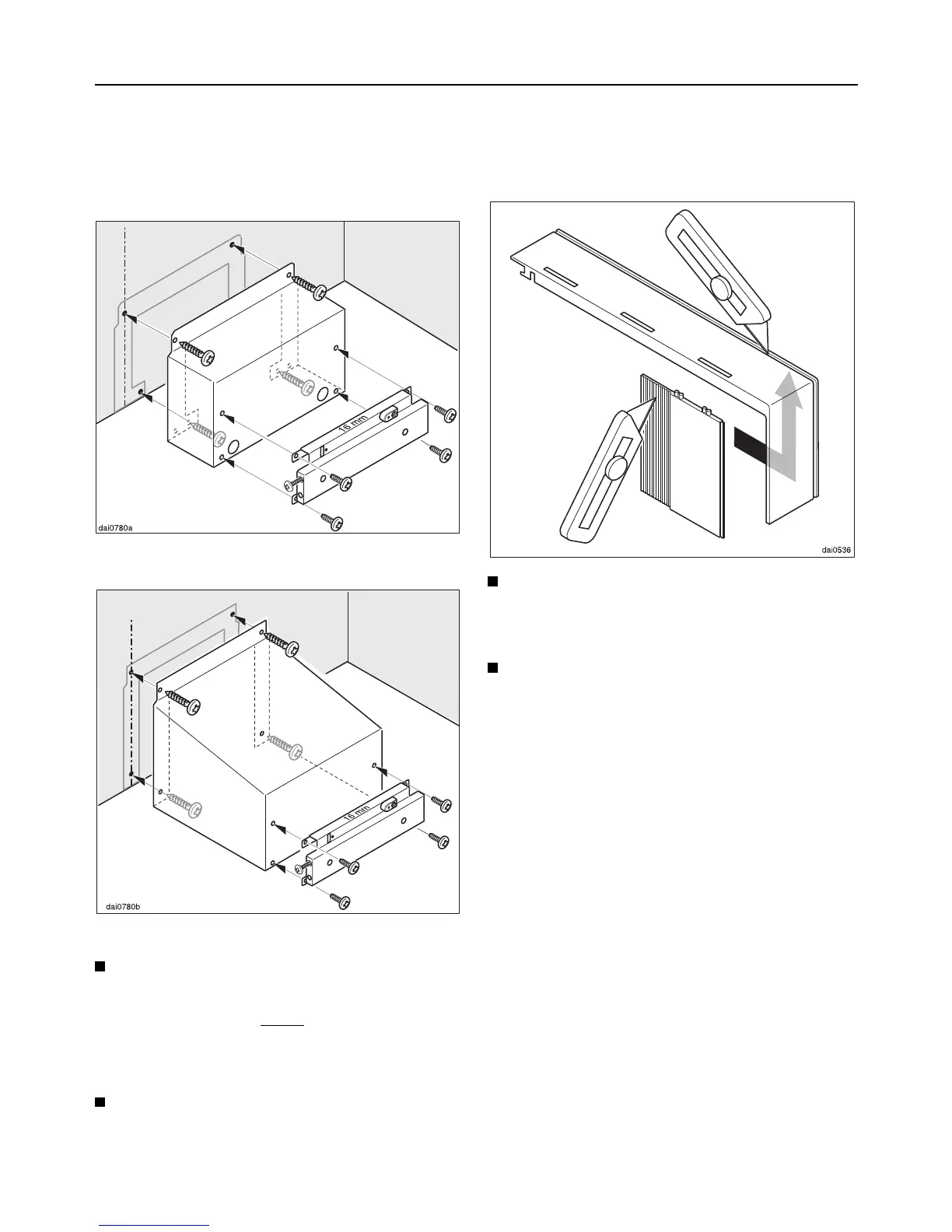

The runners are fitted to spacer blocks.
70 cm wide wall unit
90 cm wide wall unit
Screw the spacer block to the wall
unit using 4.0 x 16 mm screws with
the lower edge
flush with the wall
unit. The first row of screws must be
aligned to the marked line.
Screw the runners to the spacer
block using the 3.5 x 9.5 mm self tap-
ping screws.
When fitted in a 70 or 90 cm wide wall
unit the runners are fitted with the cover
caps supplied.
Cut the inserts to the required depth
and fit into the sides of the cover
caps.
On units with 19 mm thick sides the
cover caps for the runners must be
trimmed using a knife along the
groove.
