Installation
42

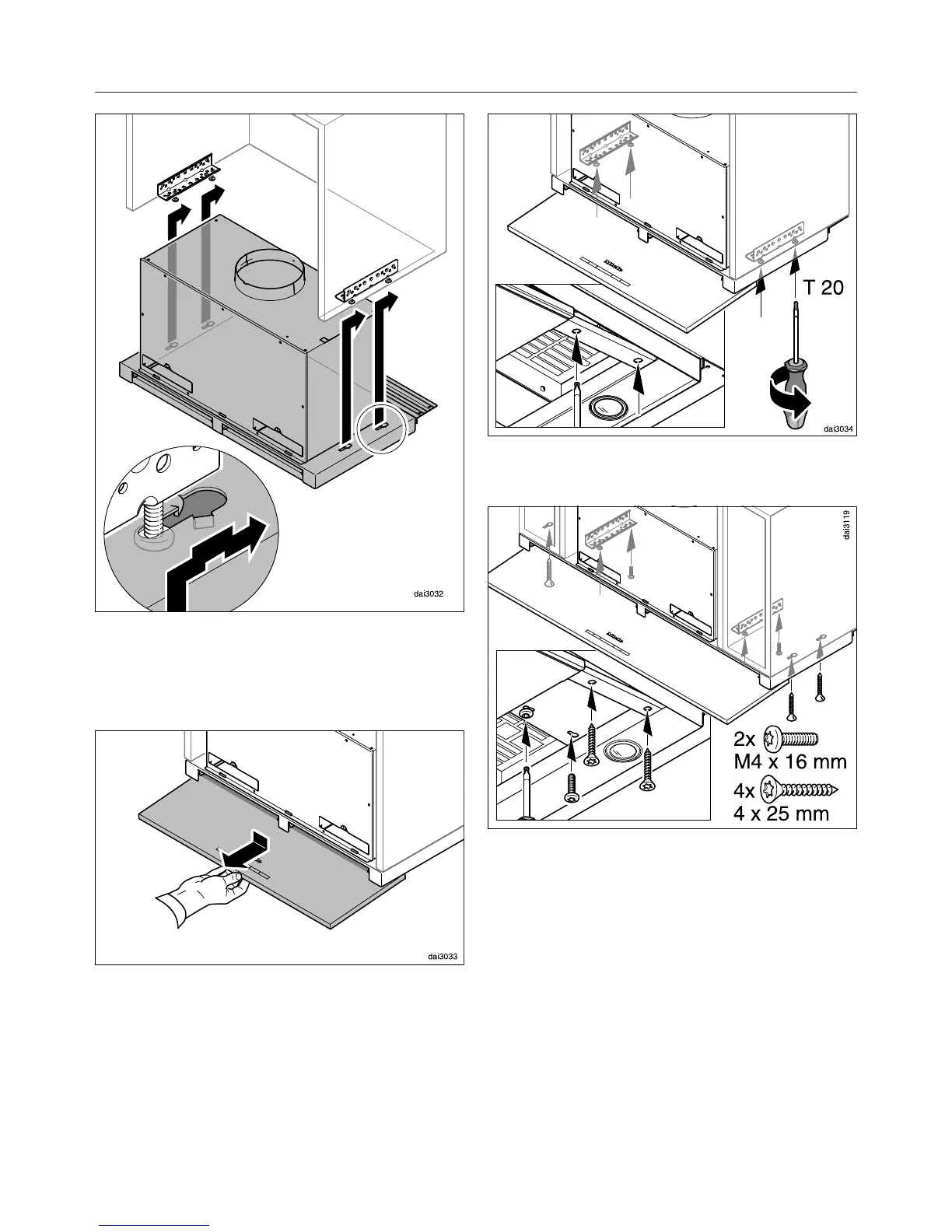

Fit the cooker hood into the wall unit
from below. Guide it back over the
safety notch until it is correctly hung
in the wall unit.
Pull the deflector plate downwards
slightly and then towards you.
Tighten the four fixing screws from
below.
When fitting a 900 mm wide cooker
hood in a 600 mm wide wall unit, in‐
sert the two rear screws at this stage.
If the wall unit has side sections, you
will also need to secure it to the base
on either side.
Push the deflector plate back in.
