Installation
43

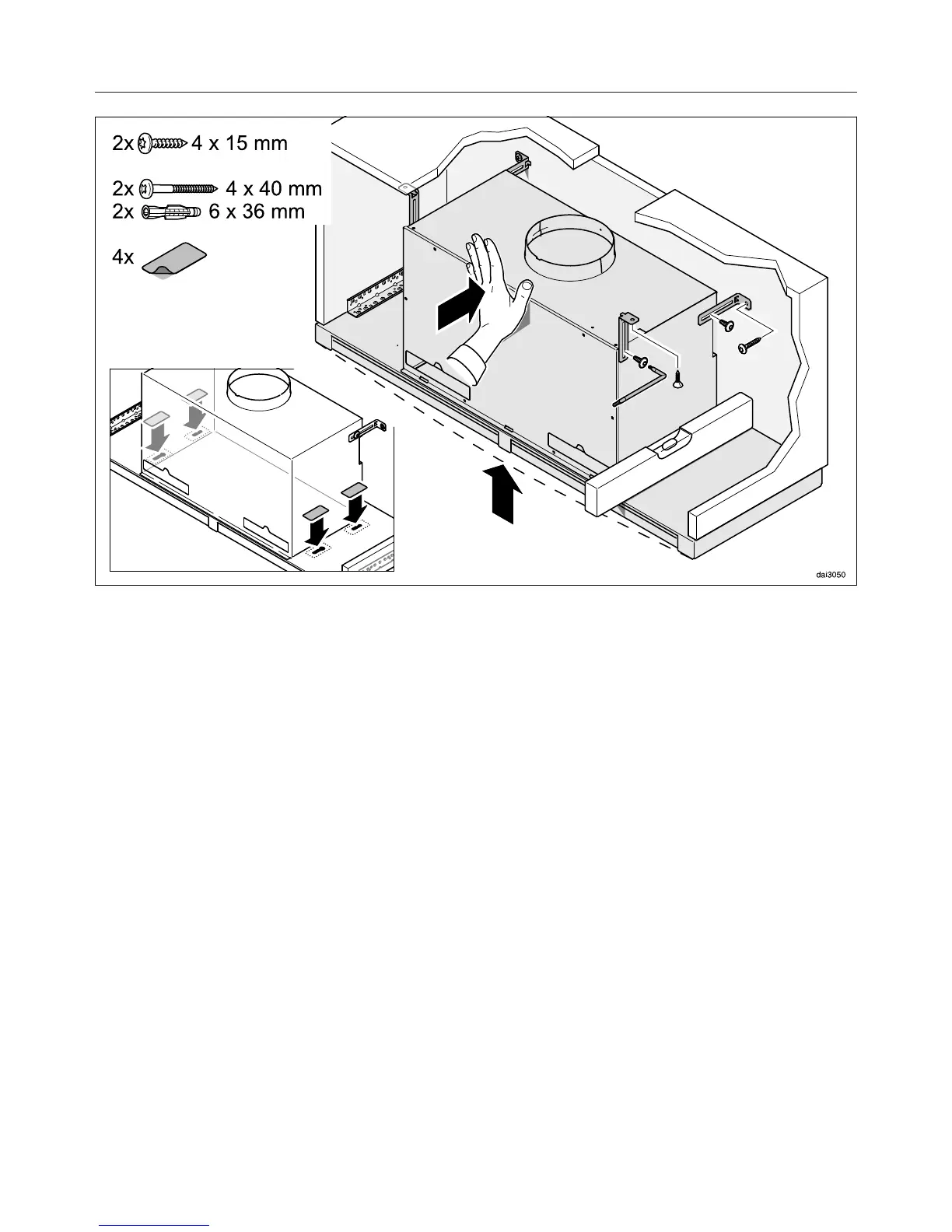

When fitting a 900 mm wide cooker
hood into a 900 mm wide housing unit
without side base supports, the retain‐
ing brackets supplied are used to align
the cooker hood and provide additional
support. The retaining brackets are se‐
cured to the back panel of the wall unit.
If the wall unit does not have a solid
back panel, the cooker hood can be se‐
cured directly to the wall using the
screws and plugs supplied.
An angled key is supplied in case the
screws are difficult to access.
Loosen the retaining bracket screws
and push the brackets back against
the rear wall.
Align the cooker hood and mark the
position of the fixing holes in the wall
unit.
Now secure the brackets to the wall
unit.
Realign the cooker hood and tighten
up the screws on the casing.
Alternatively, the retaining brackets
can be secured to the top of the
housing unit. To do this, secure the
retaining brackets to the front fixing
points on the casing.
Use the adhesive covers supplied to
conceal the fixing holes on the de‐
flector plate which are not used.
