Building in The cooker hood is intended to be
built-into wall units, cooker hood
housing units, and above breakfast
bars or island areas.
Check prior to installation that the top of
the appliance will be accessible after
installation.
If this is not the case, install the exhaust
ducting and prepare the electrical
connection before installation.
^

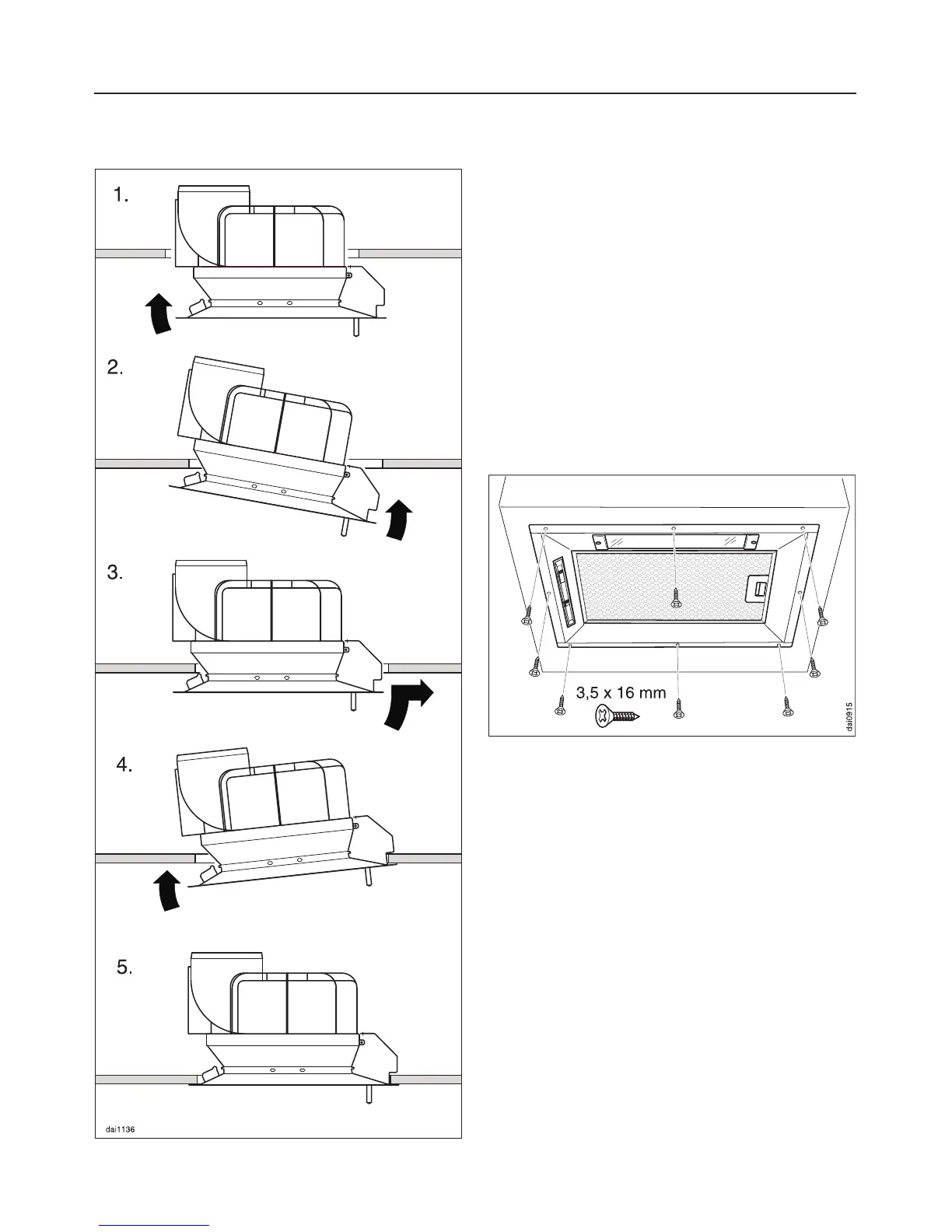

Place the appliance, as illustrated, in
the cut-out from below and align it.
^
Secure the cooker hood to the
housing using 3.5 x 16 mm screws.
Preparation for extraction
^
Secure the vent ducting to the
exhaust connection with a hose clip
and connect to the venting system
(see section on "Extraction").
Installation
18
