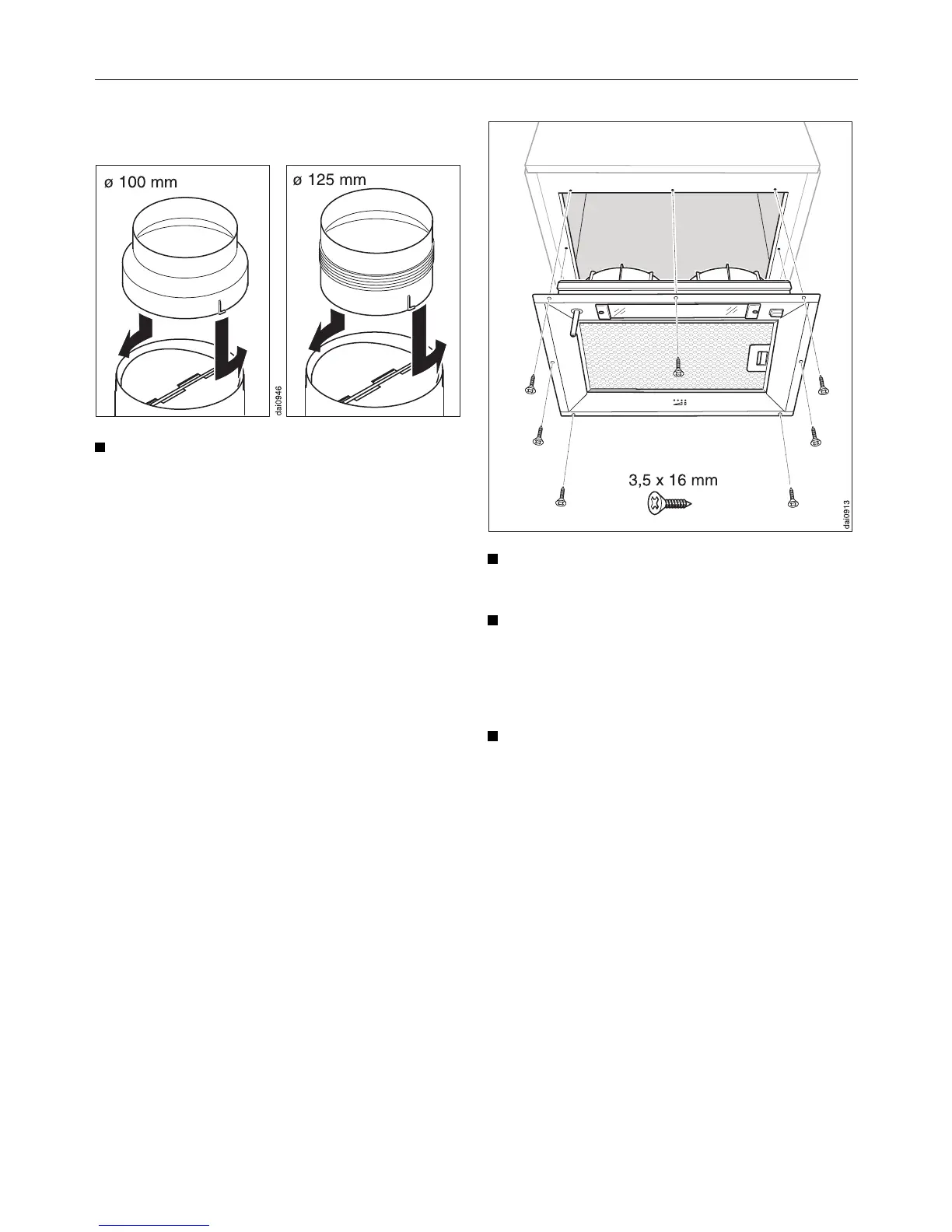

Exhaust connection
A ø 100 mm or ø 125 mm adapter
must be fitted to the exhaust connec-
tion to suit the exhaust ducting being
used. Turn it slightly anti-clockwise
to secure it.
(see "Connection for air extraction").
Building in
The cooker hood is intended to be built-
into wall units, cooker hood housing
units, and above breakfast bars or is-
land areas.
Check prior to installation that the top
of the appliance will be accessible after
installation.
If this is not the case, install the ex-
haust ducting and prepare the electri-
cal connection before installation.
Place the appliance in the cut-out
from below and align it.
Secure the cooker hood by the
frame using 3.5 x 16 mm screws.
Preparation for extraction
Secure the vent ducting to the ex-
haust connection with a hose clip
and connect to the venting system
(see section on "Extraction").
Installation
