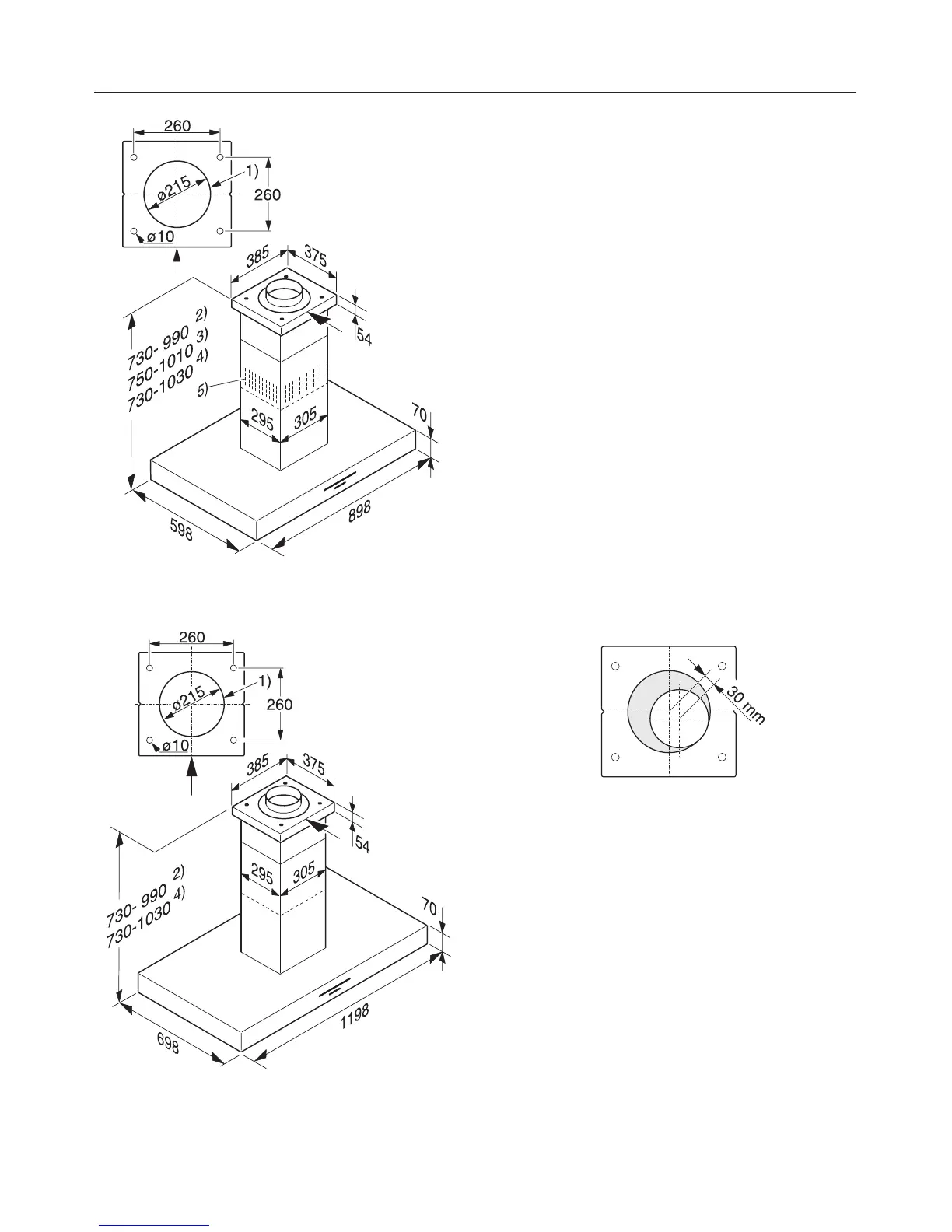

Miele DA 420 V EXT - Appliance Dimensions; Installation Dimensions

DA 420 V
(Ceiling fixing viewed from above)
DA 424 V
(Ceiling fixing viewed from above)
1) Cut-out for feeding through the
exhaust ducting, the mains cable and,
with ... EXT models, the connection
cable to the external motor
In recirculation mode, only the mains
cable is required.
2) Height range for appliance in
extraction mode (the appliance is
delivered with this height range as
standard).
3) Height range for appliance in
recirculation mode
4) Possible height range for appliance
in extraction mode (see "Installation").
5) Ventilation grille positioned at the top
for recirculation
Exhaust connection C 150 mm (not
needed for recirculation mode)
The exhaust connection in the ceiling
plate is not fixed in the middle which
means that the hood can also be
installed where the exhaust cut-out in
the ceiling is not centrally positioned
over the hob. There is a max. margin of
30 mm in any direction.
Appliance dimensions
