DA 5100 D, DA 5100 D EXT

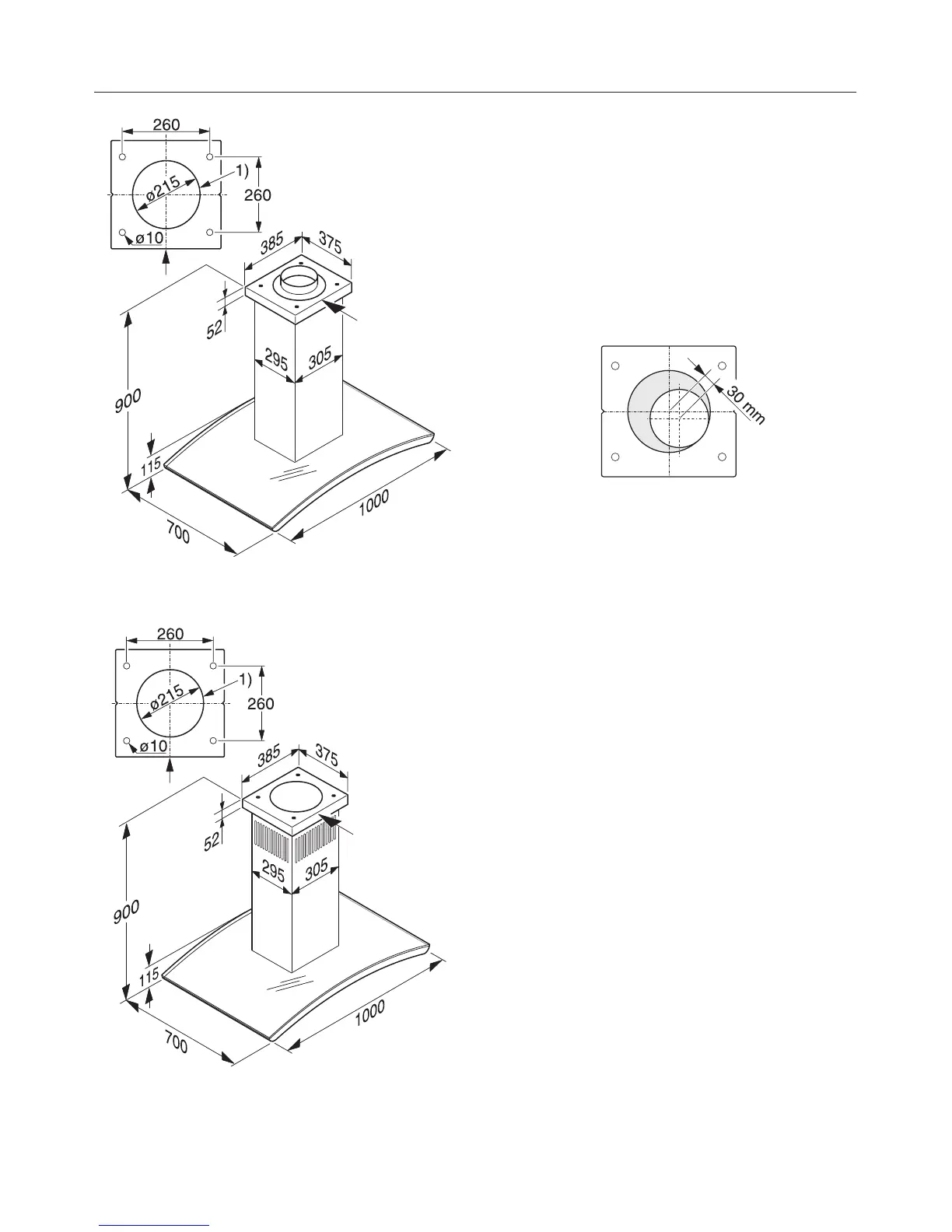

(Ceiling fixing viewed from above)
DA 5100 D U
(Ceiling fixing viewed from above)
1) Cut-out for feeding through the
exhaust ducting, the mains cable and,
with ... EXT models, the connection
cable to the external motor
In recirculation mode, only the mains
cable is required.
Exhaust connection C 150 mm (not
needed for recirculation mode)
The exhaust connection in the ceiling
plate is not fixed in the middle which
means that the hood can also be
installed where the exhaust cut-out in
the ceiling is not centrally positioned
over the hob. There is a max. margin of
30 mm in any direction.
Appliance dimensions
28
