Installation
45
a
1 vent collar
for an exhaust duct 6" (150mm).
b
1 reducing collar
for an exhaust duct 5" (125mm).
c
1 non-return flap
for installation in the outlet duct
collar of the motor unit (not for
recirculation mode). Depending on
the device version, the non-return
flap is already mounted.
d
Cover foil
for use when changing extraction
ducting direction
e
Wall bracket
for securing the ventilation hood on
the wall.

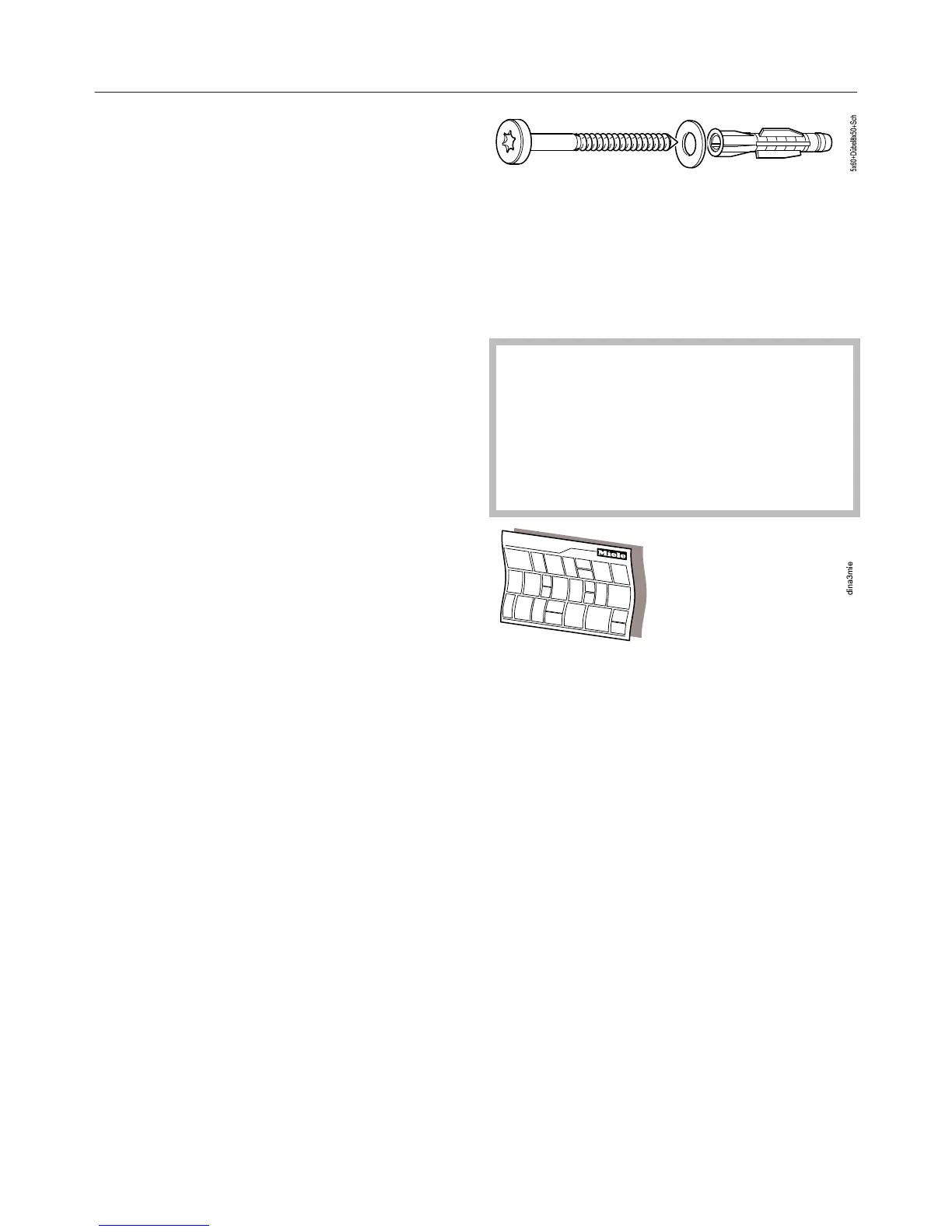

5 screws ³/₁₆" x 2 ³/₈" (5 x 60mm)
and
5 plugs ⁵/₁₆" x 2" (8 x 50mm)
3 washers ¹/₄" (6.4 mm)
for attaching to the wall. Plugs not for
use in USA / CDN.
The screws and plugs are
designed for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
