Installation
46

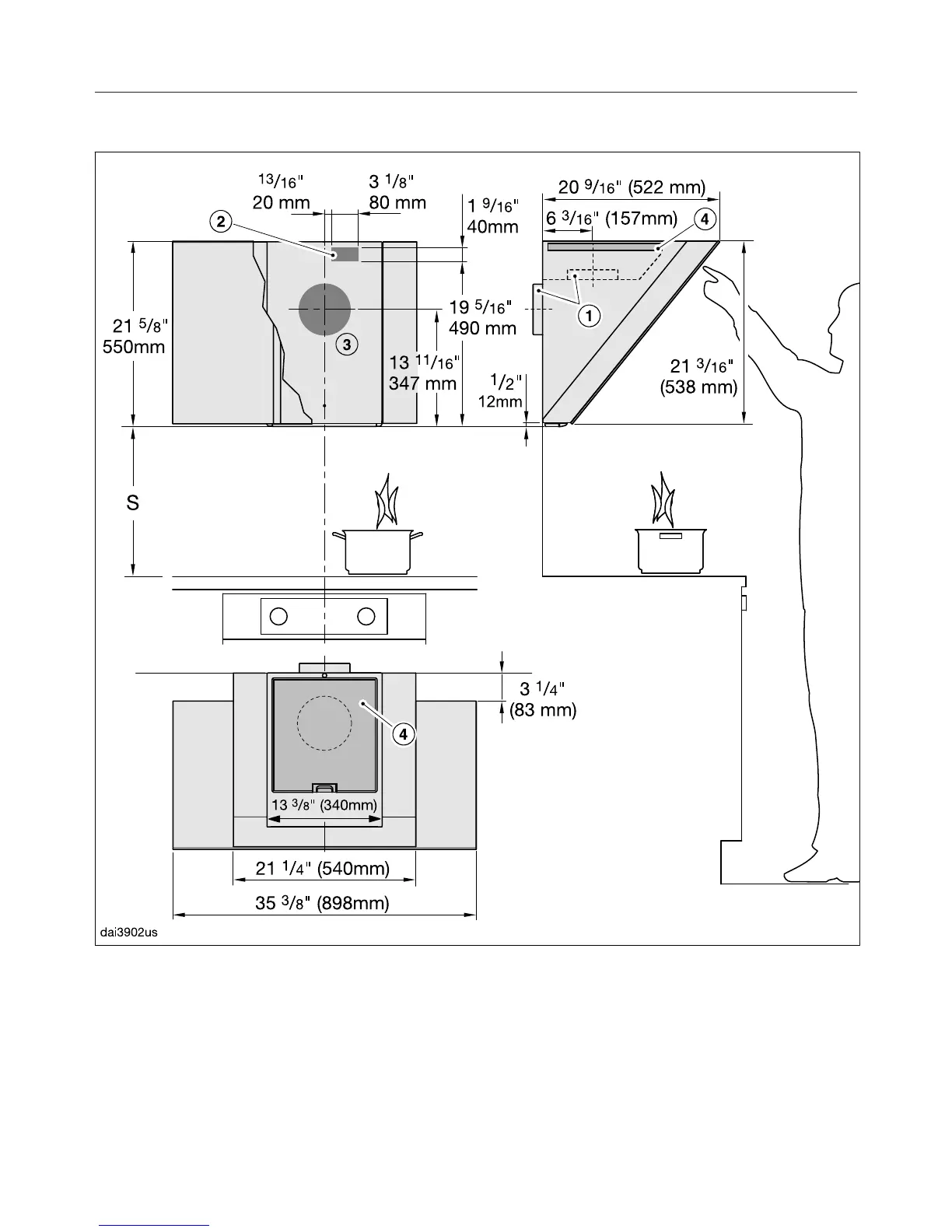

Appliance dimensions
The drawing is not to scale
a
Extraction ducting upward or to the rear.
b
Cut-out for ventilation hoods with hard-wired connection rather than a plug.
c
7 ⁷/₈" (200mm)cut-out ensures sufficient space through the wall for the
extraction ducting to flex.
d
Air vent for recirculation mode. The distance to the ceiling or to furniture
installed above the appliance should be at least 11³/₄"(300mm).
