a 2 runners
(1 x right, 1x left) to support the hood
in the cabinet.
b 1 spacer strip
to conceal the gap between the rear
of the appliance and the wall.
c Installation kit for recirculation
mode; contains air outlet grille, hose
and hose clips
(optional accessory)
d Installation kit DML 300 to install a
custom panel
contains retractable brackets and
screws ( optional accessory)
,
CAUTION
To avoid risk of hand or other injury,
avoid contact with sharp edges
during the assembly and installation
process.

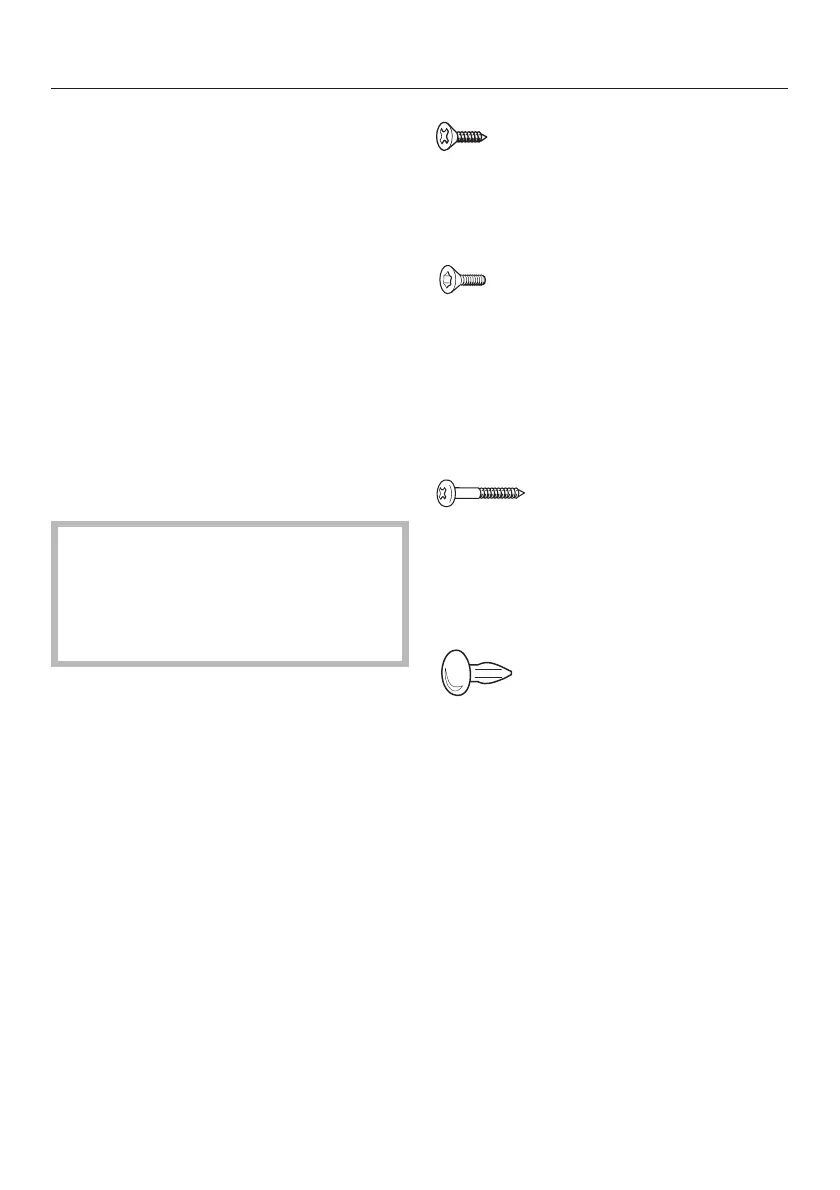

8 screws 3.5 x 16 mm
to anchor the ventilation hood in the
cabinet.
8 screws M4 x 12 mm
to anchor the ventilation hood at the
runners.
4 screws could be used (alternatively to
the plastic rivet) to fix the spacer bar.
2 screws4x30mm
to anchor the ventilation hood at rear
wall.
4 plastic rivets
to connect the space bar with the
appliance rear wall.
Installation
25
