Installation
26

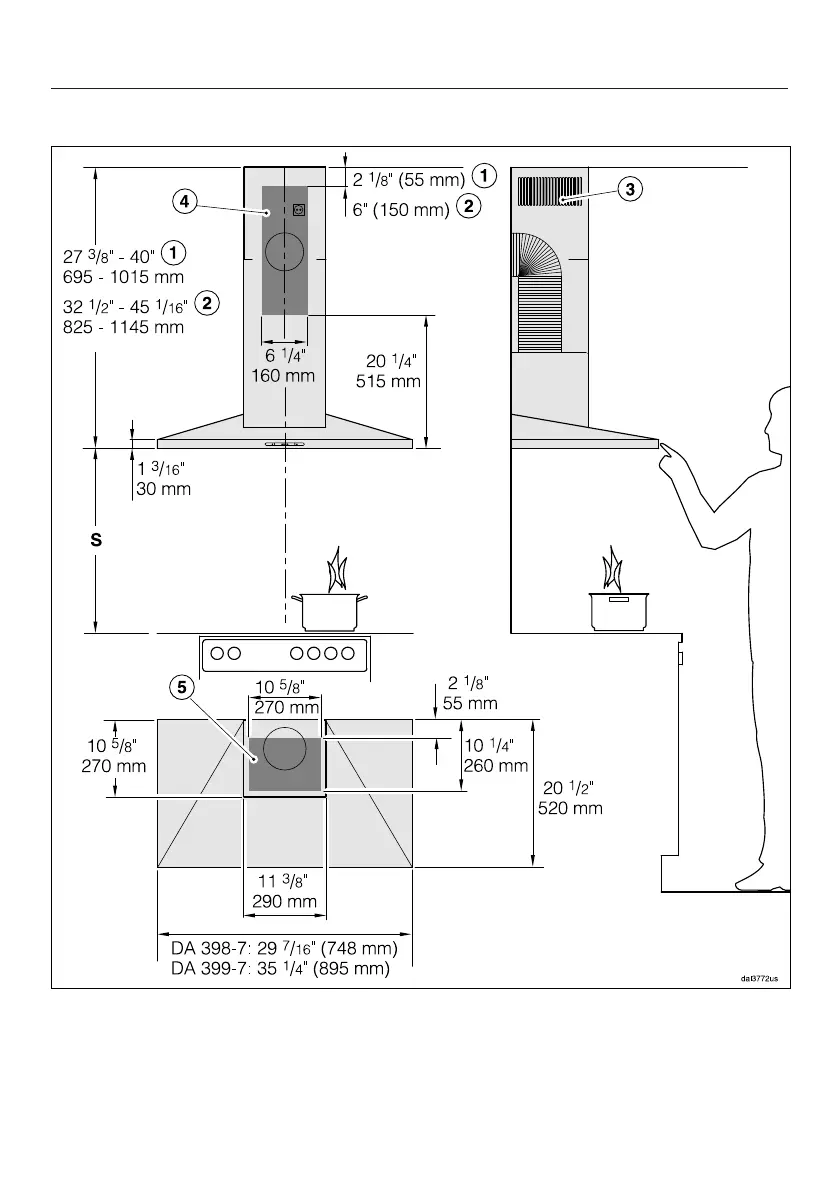

Appliance dimensions
The drawing is not to scale.
a
Extraction
b
Recirculation
c
Air vent positioned at top for recirculation
