Installation
26

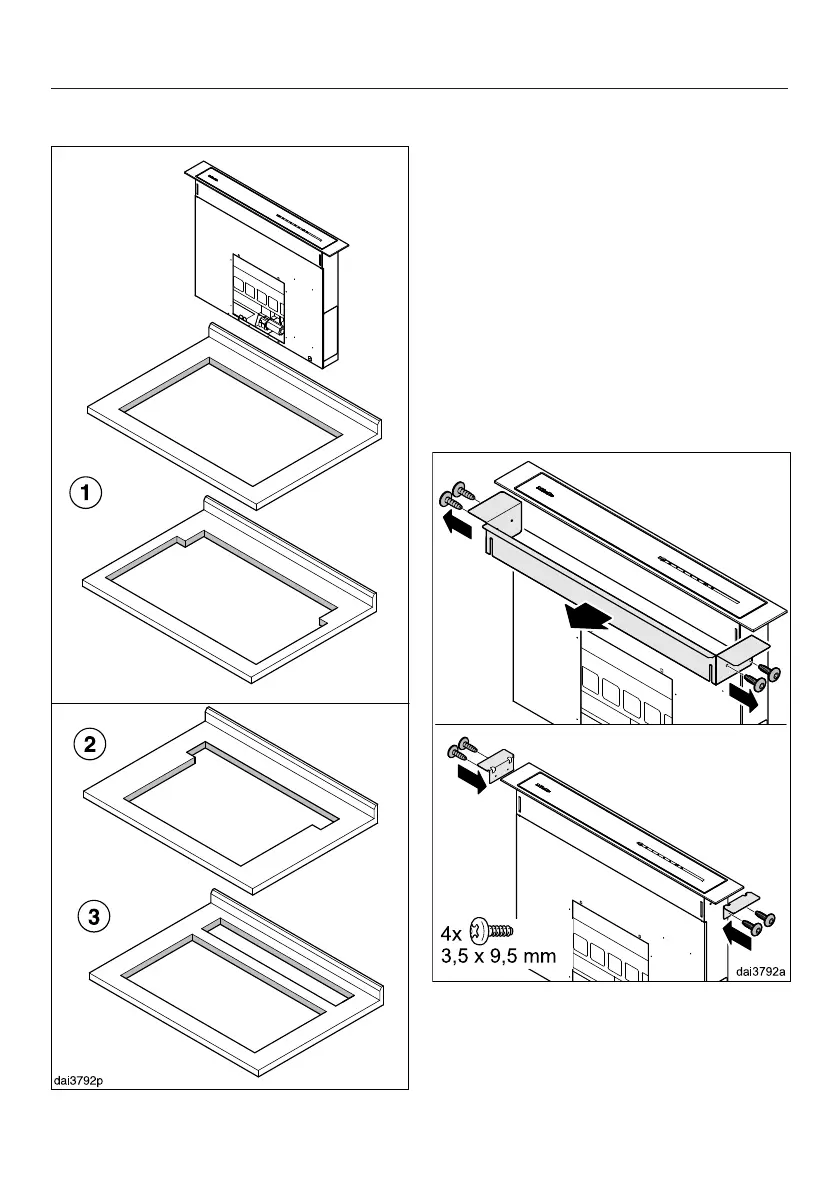

Support bracket
A support bracket is mounted on the
downdraft. It serves as a support for the
cooktop when the downdraft extractor
and the cooktop are installed in a
common cutout . In the following
situations, the support bracket should
be replaced with two small angle
brackets:
– The downdraft and cooktop are
installed in a common cutout, but the
cutout for the cooktop is narrower
– The downdraft and cooktop are
installed in two separate cutouts .
Unscrew the screws on either side,
remove the support bracket and
replace it with the two small angle
brackets supplied.
