Installation
28

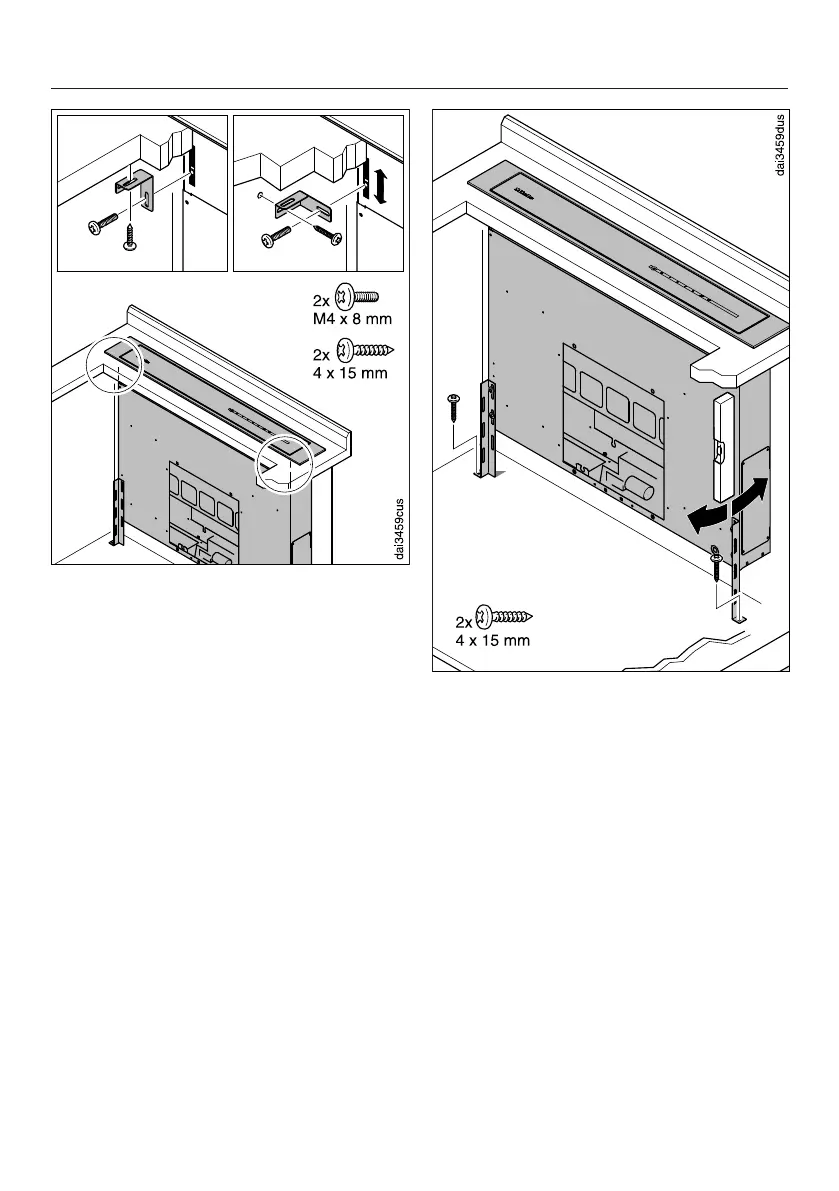

Fit the upper brackets loosely to the
downdraft casing.
The brackets can be moved within the
mounting recess.
Push the brackets upwards and
screw them into place under the
counter.
Tighten the screws on the casing.
Alternatively, the brackets can also
be rotated when fitting them so that
the downdraft can be secured to the
sides of the housing unit.
Align the downdraft vertically and
screw the brackets securely to the
base of the housing unit.
