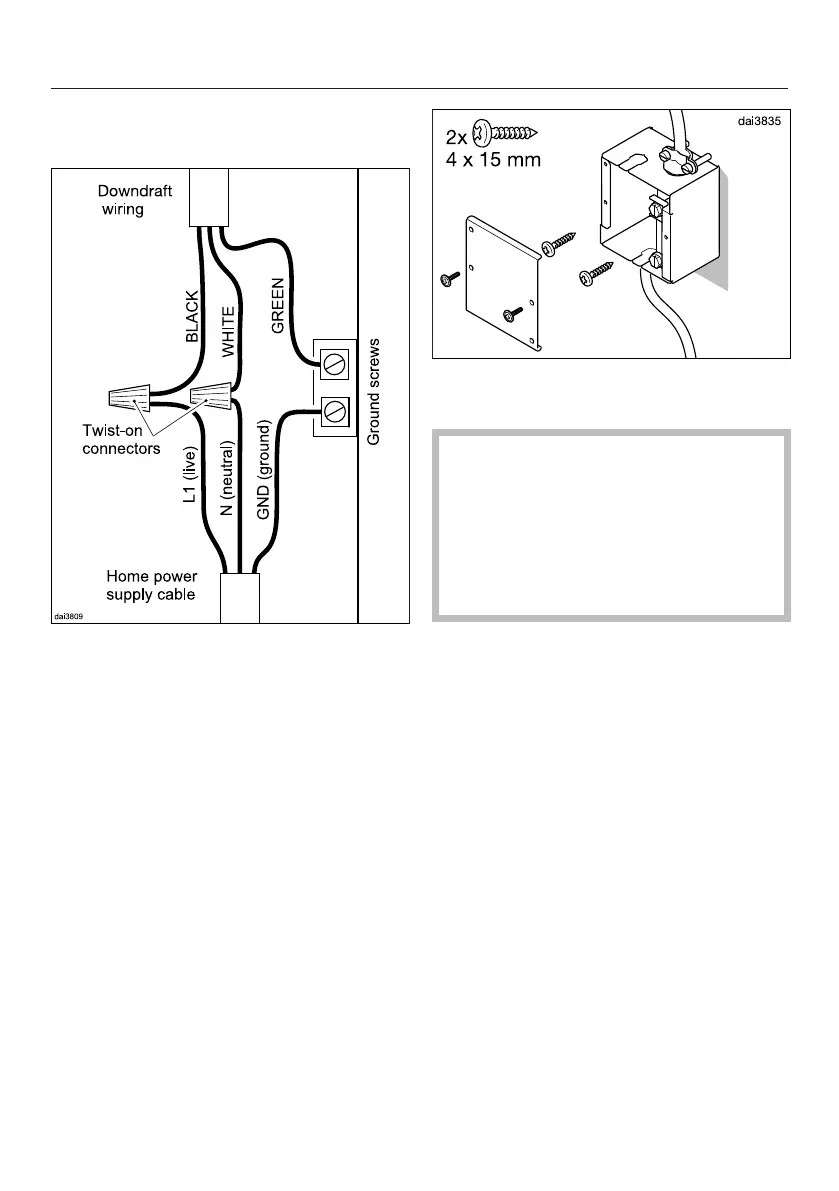

Electrical connection
35
Guide the power cord into the
connection box.
Connect the power cord:
Black....................................... L1 (live)
White .................................. N (neutral)
Green/yellow ................ GND (ground)
Secure the connection box to a
suitable place, e.g. a cabinet wall.
If moisture gets into the unit, this can
cause an electric shock
Therefore, the connection box must
not be in contact with the floor.
Position and secure the cord and
other connection leads in a suitable
place.
Refit the cover.
