Miele DAS 4620 User Manual

Installation
*INSTALLATION*
46

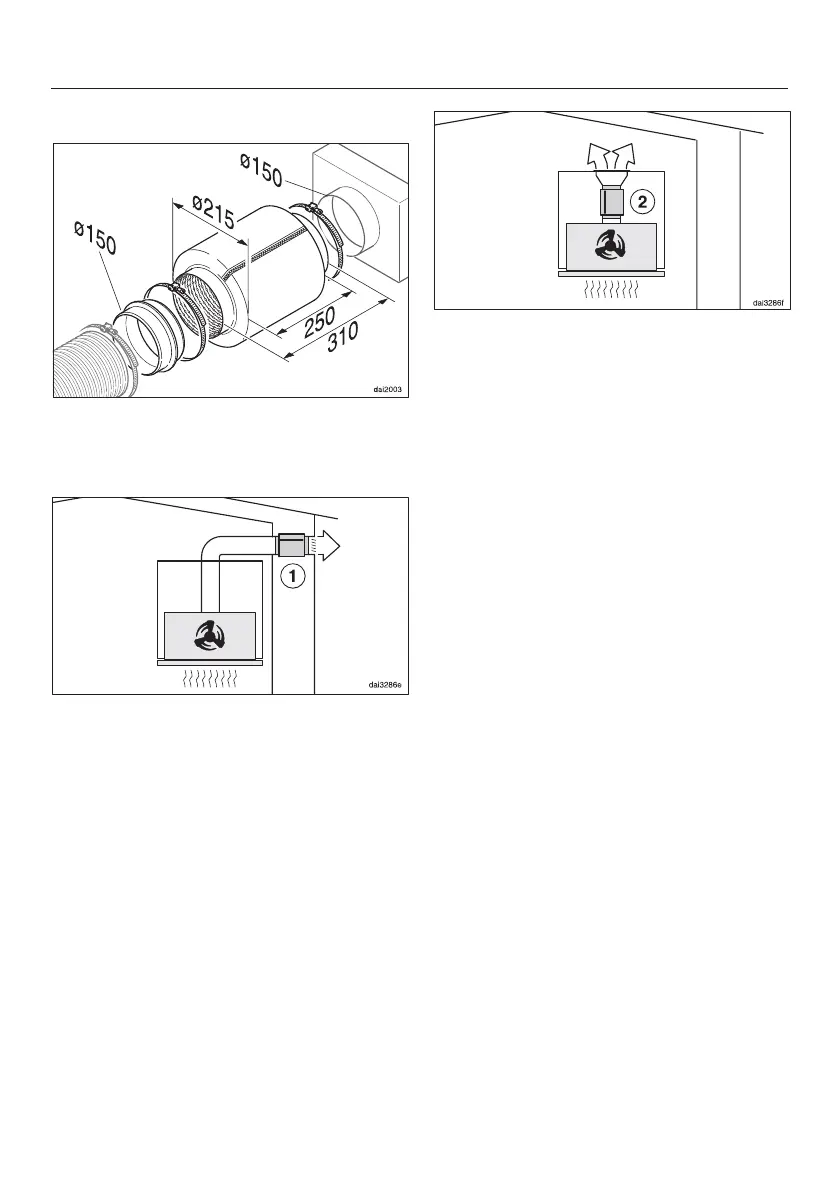

Silencer
To reduce noise levels even further, a
silencer (optional accessory) can be
installed in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating
outside reaching the kitchen through
the exhaust ducting (e.g. traffic noise).
For this reason, the silencer must be
positioned as close as possible to the
ducting exit.
In recirculation mode, the silencer
needs to be positioned between the
exhaust vent and the exhaust grille.
Check that there is sufficient space.

Miele DAS 4620 Specifications

General

Pressure (Pa)	492
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	38 dB
Maximum extraction power	602 m³/h
Noise level (high speed)	56 dB
Noise level (medium speed)	48 dB
Maximum recirculating power	585 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	66 dB
Fluid dynamic efficiency class	A
Minimum distance from electric hob	450 mm
Current	10 A
Connected load	90 W
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	23.1 kWh
Bulb type	LED
Bulb power	3 W
Illuminance	330 lx
Number of bulbs	1 bulb(s)
Type	Built-in
Cord length	1.5 m
Control type	Buttons
Product color	Stainless steel
Built-in display	No
Exhaust location	Top
Exhaust connection diameter	150 mm
Number of filters	1 pc(s)

Weight and Dimensions

Depth	423 mm
Width	596 mm
Weight	12000 g
Depth (min)	273 mm
Height (max)	436 mm
