Installation
*INSTALLATION*
43

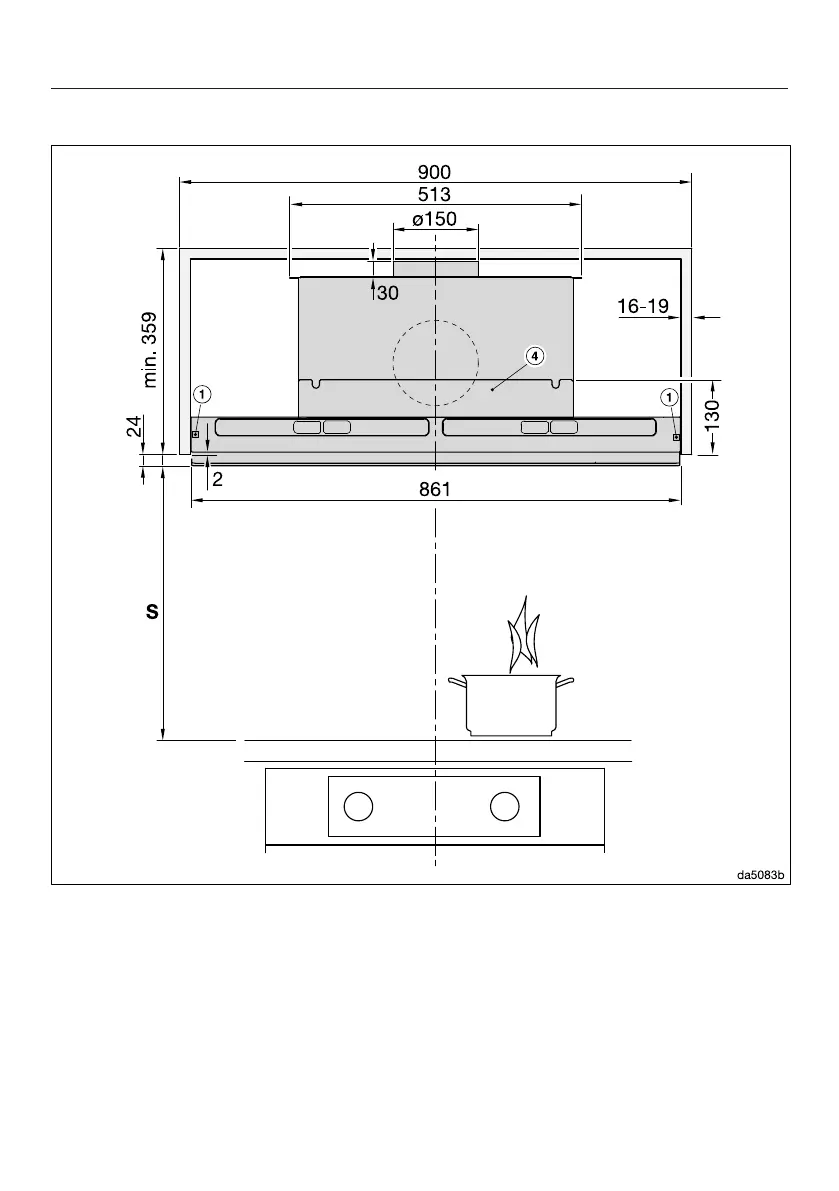

Dia. 2: DA4940 in a 900mm wide cabinet.
The drawing is not to scale
See diagram 1 for side view
Footnotes for diagrams 1to 2:
a
The mounting brackets are designed for cabinets with sides that are between
16 and 19mm thick.
b
Alternative exhaust duct at the back.
c
Cut-out for extraction mode or recirculation mode with DUU150 conversion kit
