Installation
*INSTALLATION*
37

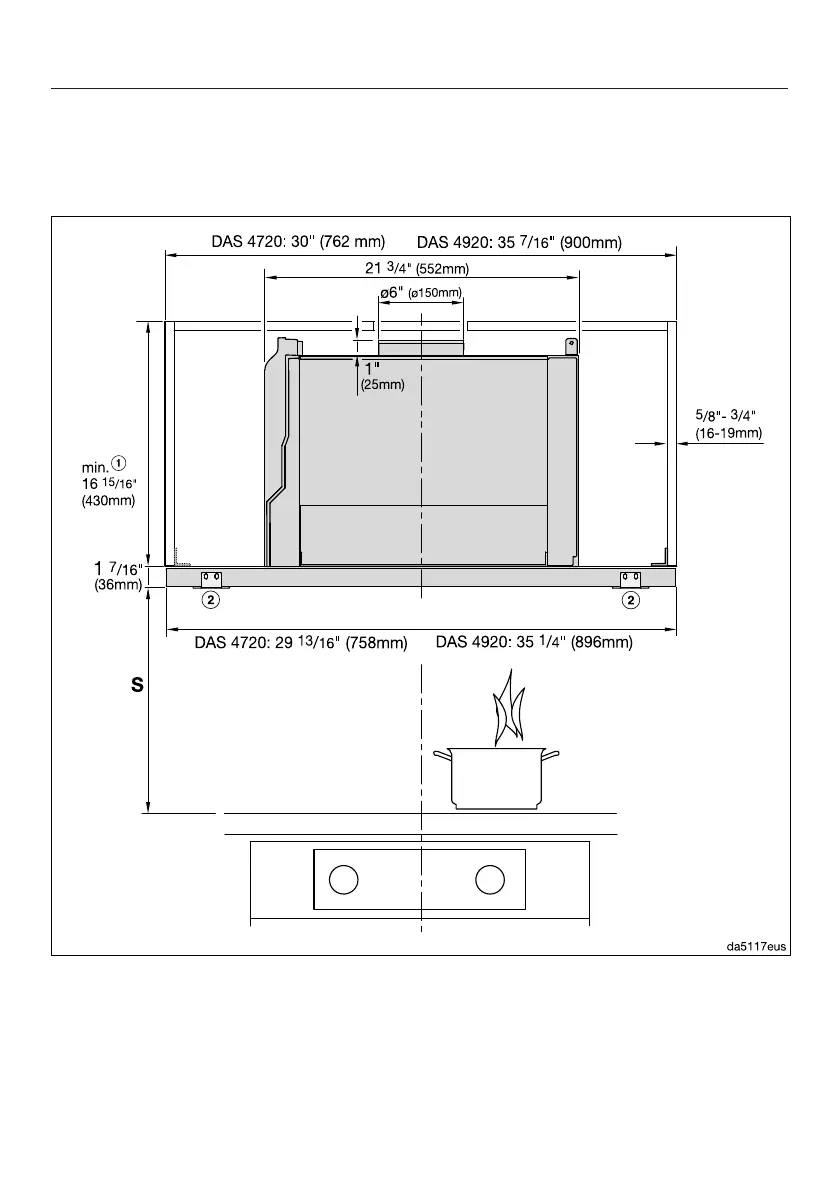

Diagram 2:
DAS4720 in a 30" (762mm) wide cabinet
DAS4920 in a 35 ⁷/₁₆" (900mm) wide cabinet
The drawing is not to scale
See diagram 1 for side view.
