Miele DGC 7840 - Steam Oven Components DGC 7770, DGC 7870

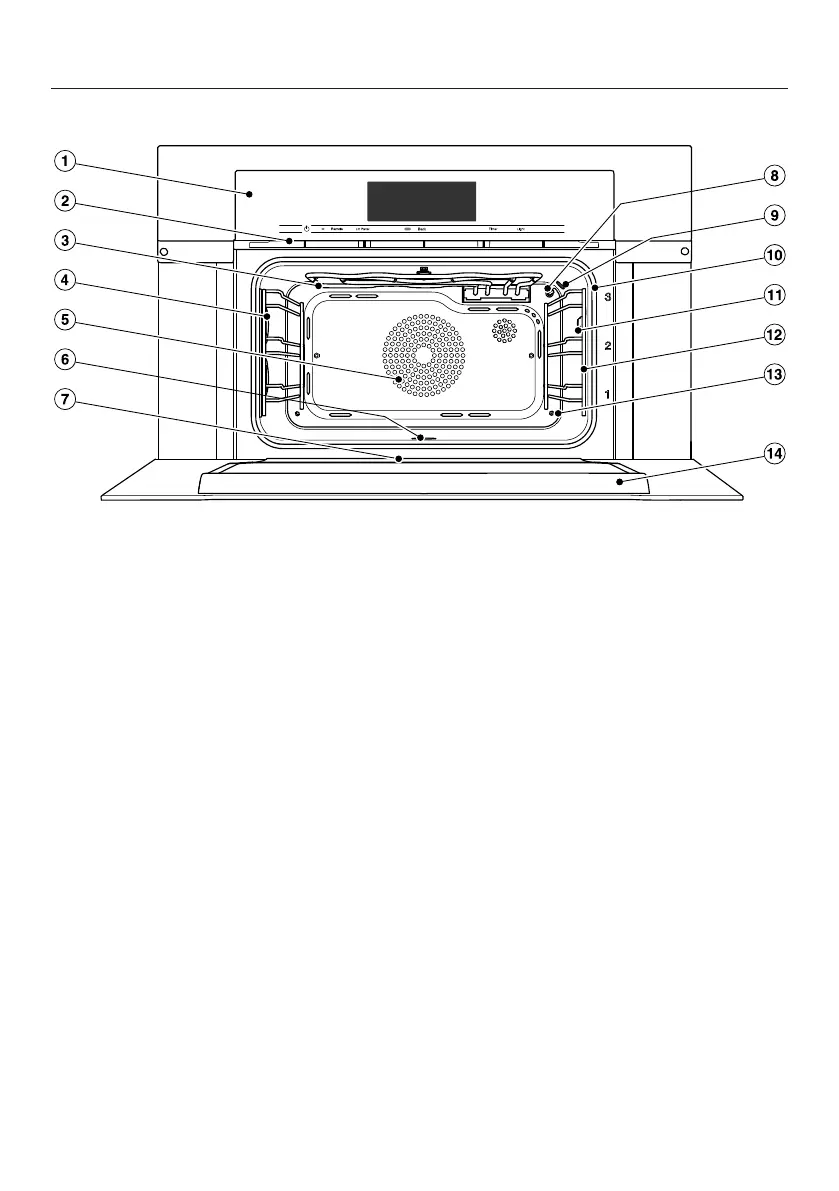

Overview
22
DGC7770, DGC7870
a
Controls
b
Vent
c
Browning/Broiling element
d
Oven interior lighting
e
Convection fan with heating element
f
Oven floor with bottom heater element and floor filter underneath it
g
Drip channel
h
Temperature sensor
i
Moisture sensor
j
Door seal
k
Connection socket for the probe
l
Side runners with 3shelf levels
m
Steam inlet
n
Door
