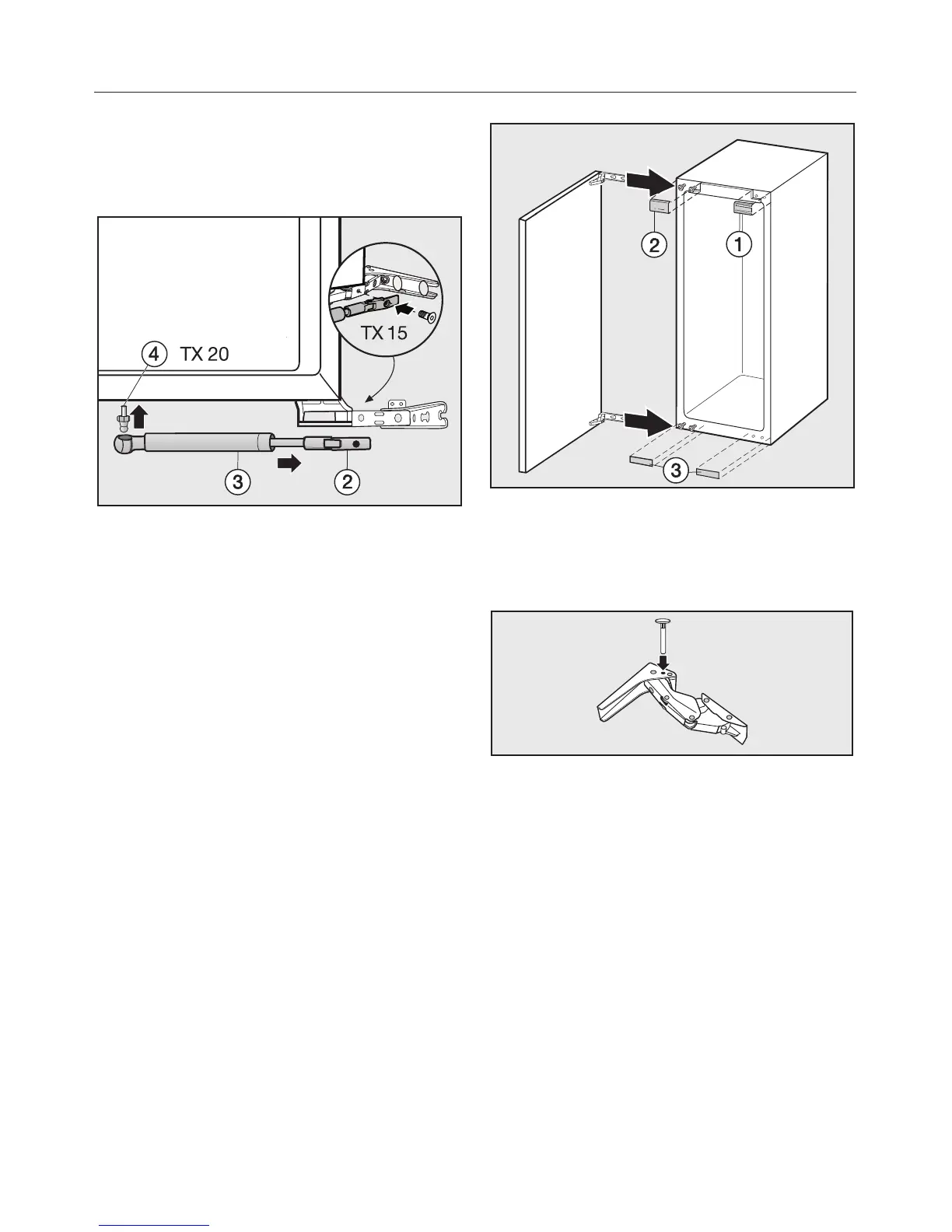

To secure the soft-close mechanism
^
Place the door with the outer side
downwards on a stable surface.
^ Screw ball joint d of soft-close
mechanism c into the new fixing
holes.
^ Screw mounting b onto the hinge
and tighten securely.
^ Open out soft-close mechanism c
and hook it onto ball joint d.
^ Refit the door onto the pre-fitted
screws, and then tighten the screws.
^ Replace covers a, b and c.
^
Replace the locking pins into the top
of the hinges to prevent the door
opening too far.
Changing the door hinging
41
