Aligning the appliance
^
Align the appliance with the
surrounding cabinets.

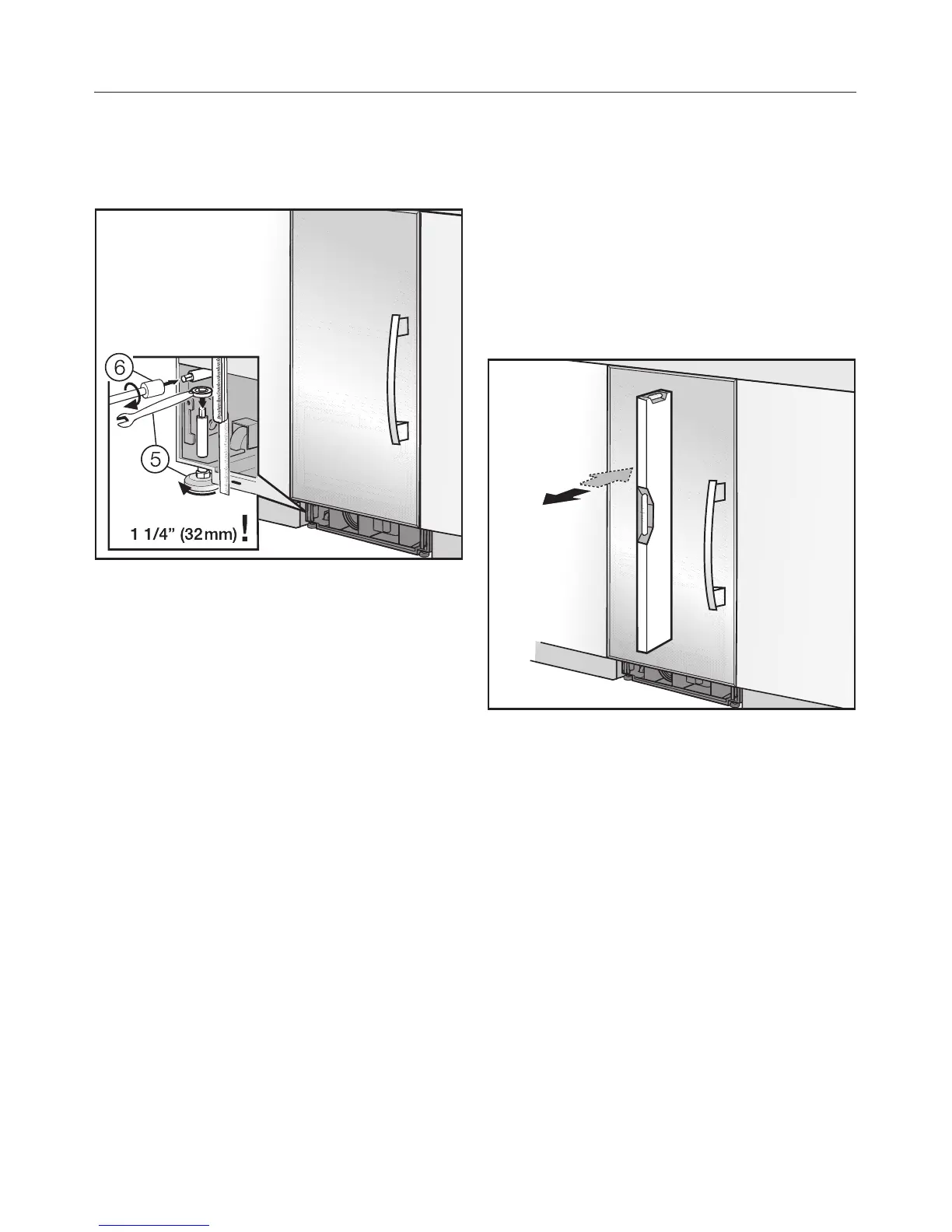

The height-adjustable feet at the front
and rear can all be adjusted from the
front.
– Front: with an open-ended wrench
½" (SW 13).
The feet can be adjusted from the
top and bottom e.
–
Rear: with a
5
/
16
" (8 mm) hex nut
driver via flexible shaft f.
A mark is located on the appliance
base and is used as a standard gauge
for height adjustment. When adjusting
the height, align this mark at 1
1
/
4
"
(32 mm) above the floor.
^
Unscrew the height-adjustable feet
until the mark on the base has
reached the indicated guide
dimension 1
1
/
4
" (32 mm).
^
Check that the appliance is level with
the surrounding cabinets.
Installing the appliance
58
