^ Fit cover g onto fixing bracket h.
^ Secure fixing bracket h to the
bottom of the appliance with screws
i (M5 x 15).
^ Carefully remove the protective foil
from sealing strip j.
^ Apply the sealing strip to the side of
the appliance on which the door is
opened so that it is flush with the
front edge of the appliance.
Fit the sealing strip so that it meets
up with the lower edge of top cover
d and then cut the sealing strip
2-3mmabove bottom fixing bracket
h.
^
Push the appliance into the niche
until covers d and g touch the front
edge of the side walls of the housing
unit.

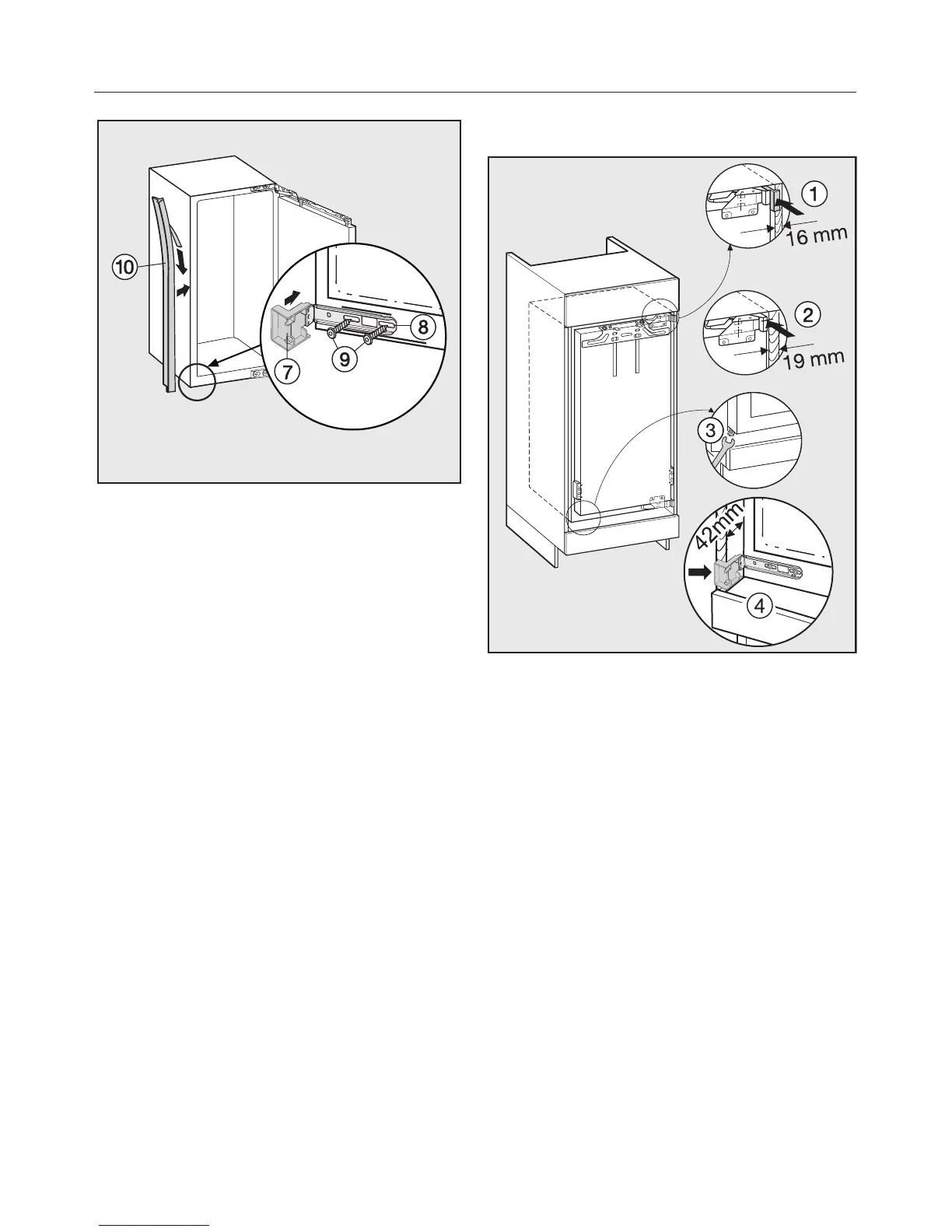

Building in the appliance
– With 16 mm thick walls:
The spacers should touch the front
edge at the top and bottom of the
side walls of the housing unit, detail
a.
–
With 19 mm thick walls:
The front edges of the top and
bottom hinges sit flush with the front
edge of the housing unit side walls,
detail b.
^
Make sure that the covers on the top
and bottom fixing brackets sit flush
with the front edges of the housing
unit side walls, detail d.
This will create a gap all round of
42 mm to the front edges of the
housing unit side walls.
Building in the appliance
42
