^ Loosen screws b on the top and
bottom fixing brackets c.
^ Press fixing bracket c against the
side wall and tighten screws b.
^
Attach fixing bracket c to the
housing unit side wall with screws d.
Drill holes in the housing unit side
walls if necessary.
^
Break off the protruding end of top
cover e, turn the cover around and
fit it on top fixing bracket c.
^
Fit oblong cover f onto top fixing
bracket c.
^
Break off the protruding end of
bottom cover e. It is no longer
required.
^
Fit angled cover g onto bottom fixing
bracket c.
^
Close the appliance door.

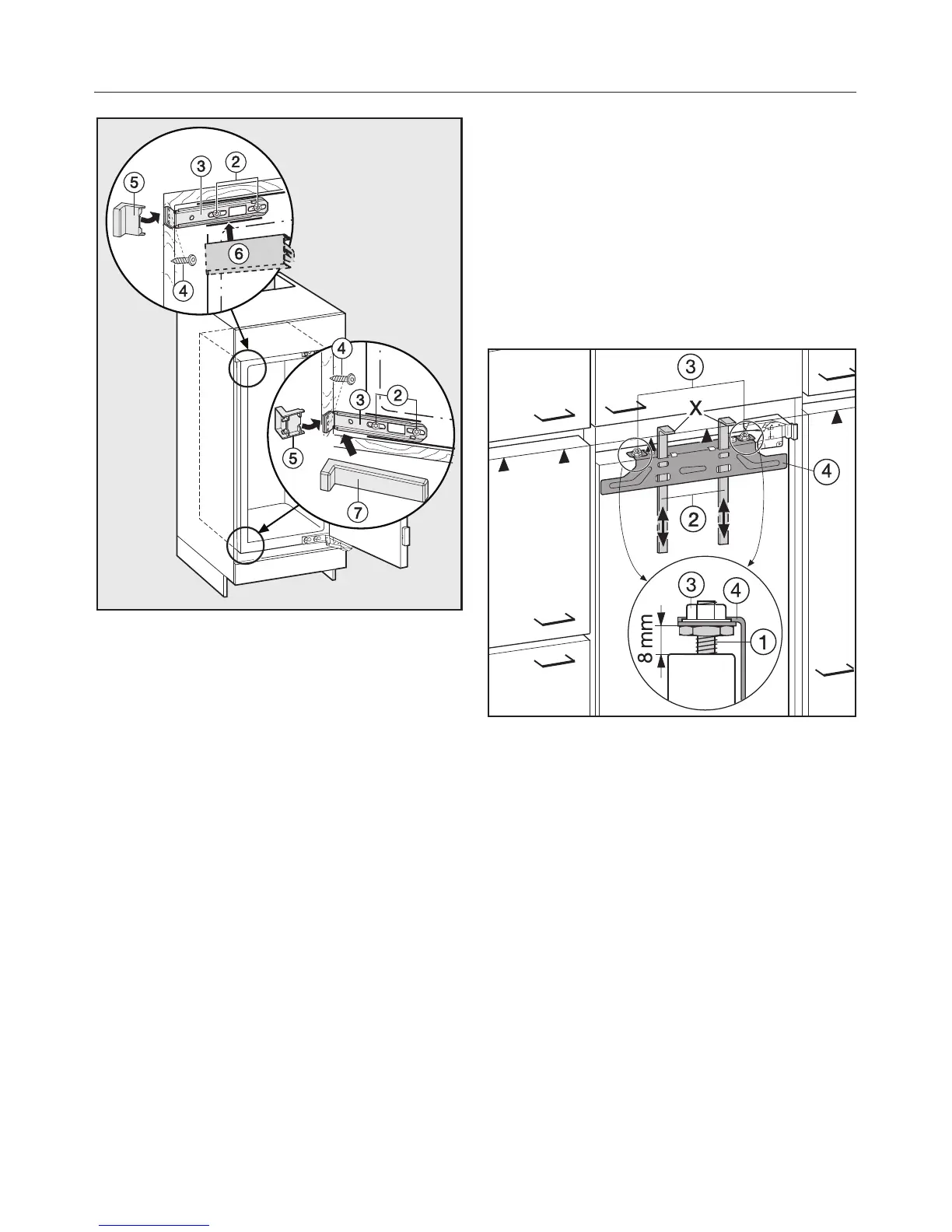

Fitting a furniture door
^
A gap of 8 mm a must be set
between the appliance door and the
central fixing bracket.
^
Push fitting aids b up to the height of
the furniture door: the lower edge X
of the fitting aids must be at the same
height as the upper edge of the
furniture door being fitted (see - on
the diagram).
^
Undo nuts c and take fixing bracket
d off together with the fitting aids.
Building in the appliance
44
