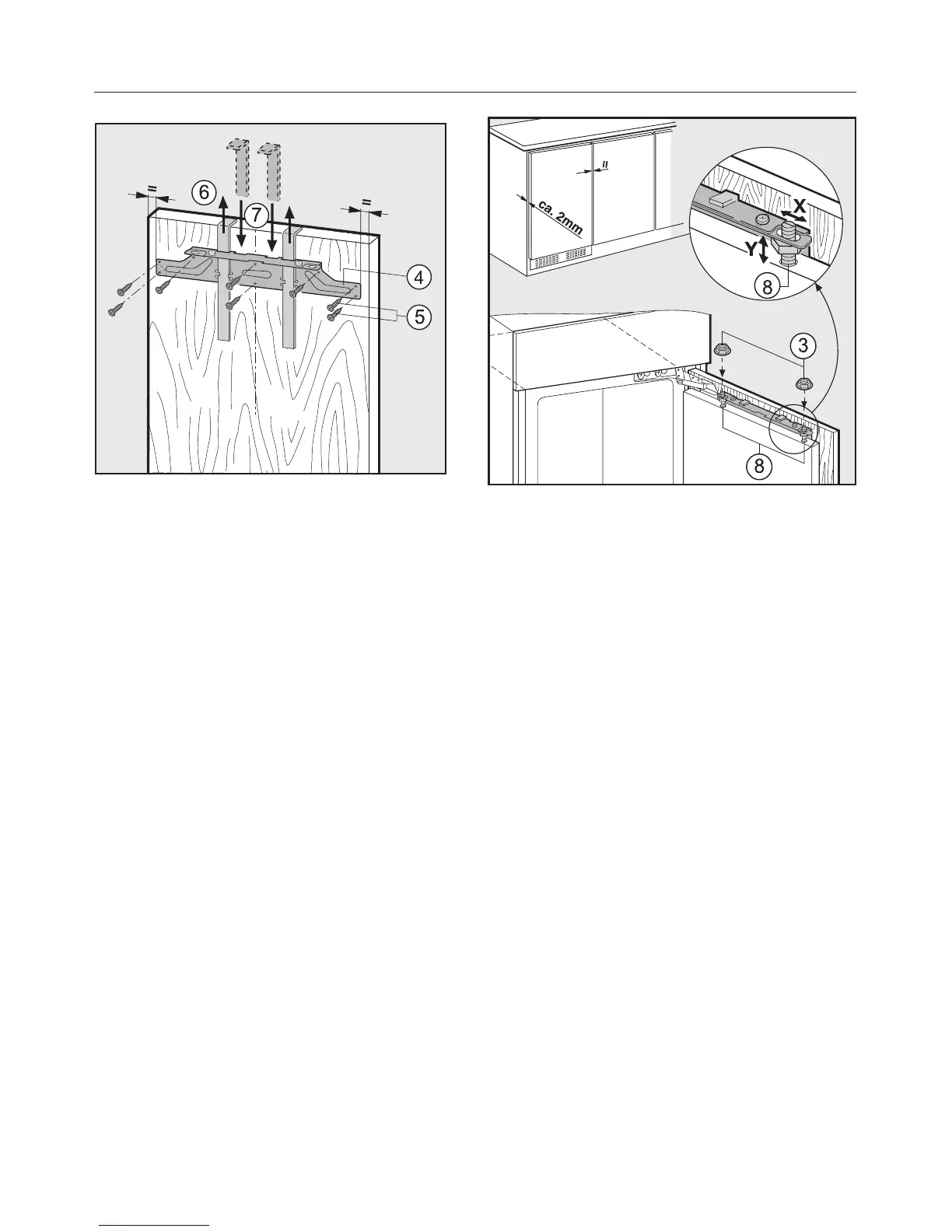

^ Using a pencil, lightly mark a line
down the centre of the inside of the
furniture door.
^ Hang fixing bracket d with the fitting
aids onto the inside of the furniture
door. Align the fixing bracket
centrally.
^ Attach the fixing bracket securely
using at least 6 short chipboard
screws e (4 x 14 mm). (On cassette
doors only use 4 screws on the
edges).
^
Pull the fitting aids upwards to
remove them f.
^
Turn them around and fit them into
the middle slots on fixing bracket g
for safe keeping.
^ Hang the furniture door onto
adjusting bolts h.
^ Loosely attach nuts c on the
adjusting bolts.
^ Close the door and check the
distance between the door and
neighbouring furniture doors.
^ Align to match neigbouring doors if
necessary:
Side adjustments X are made by
sliding the furniture door, and height
adjustments Y by turning adjusting
bolts h with a screwdriver.
^
Tighten nuts c.
Building in the appliance
