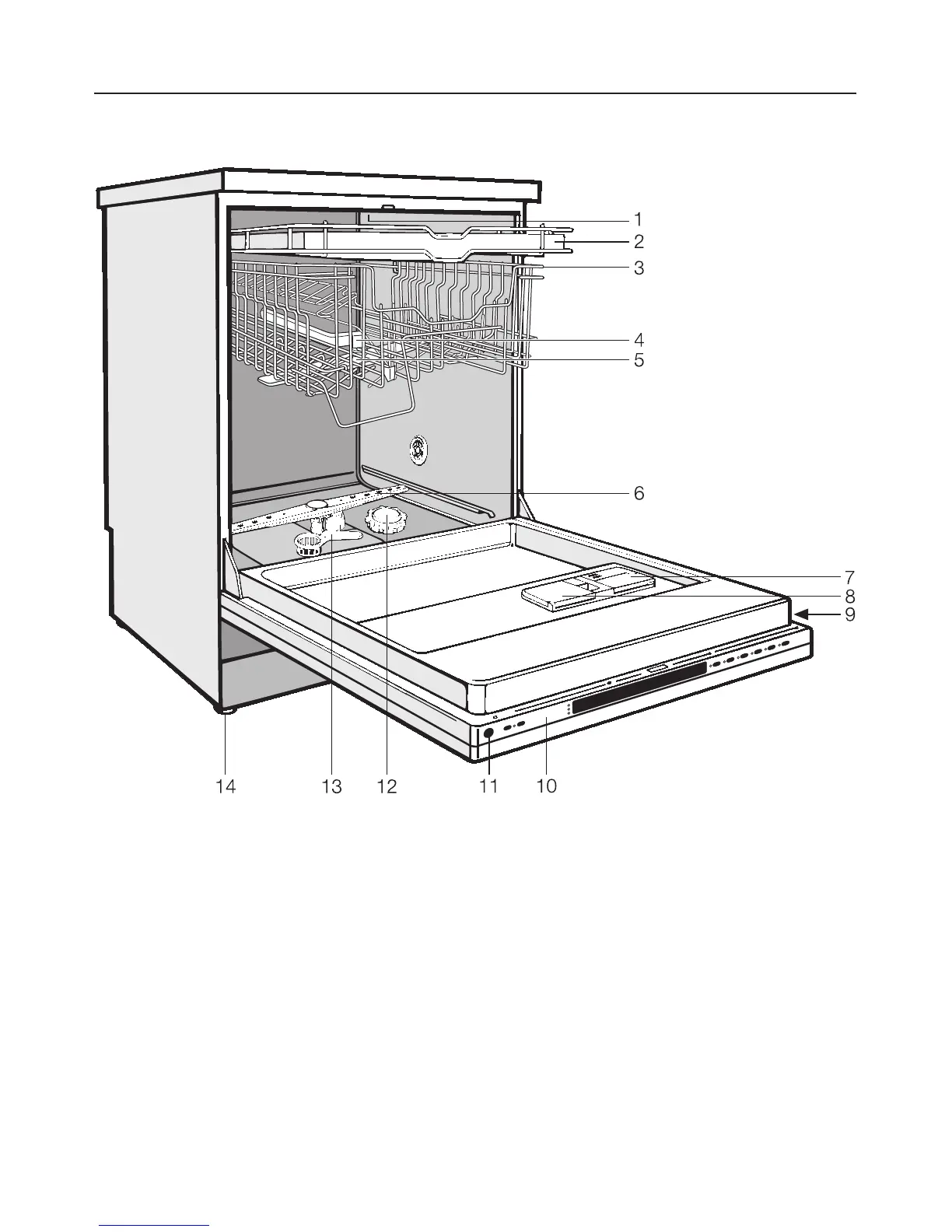

Appliance overview
1 Upper spray arm (not visible)
2 Cutlery tray
(depending on model)
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm
7 Rinse aid reservoir
(with dosage selector)
8 Dual compartment detergent
dispenser
9 Data Plate
10 Control panel
11 In-operation indicator light
12 Salt reservoir
13 Filter combination
14 Four height adjustable screw feet
Guide to the appliance
4
