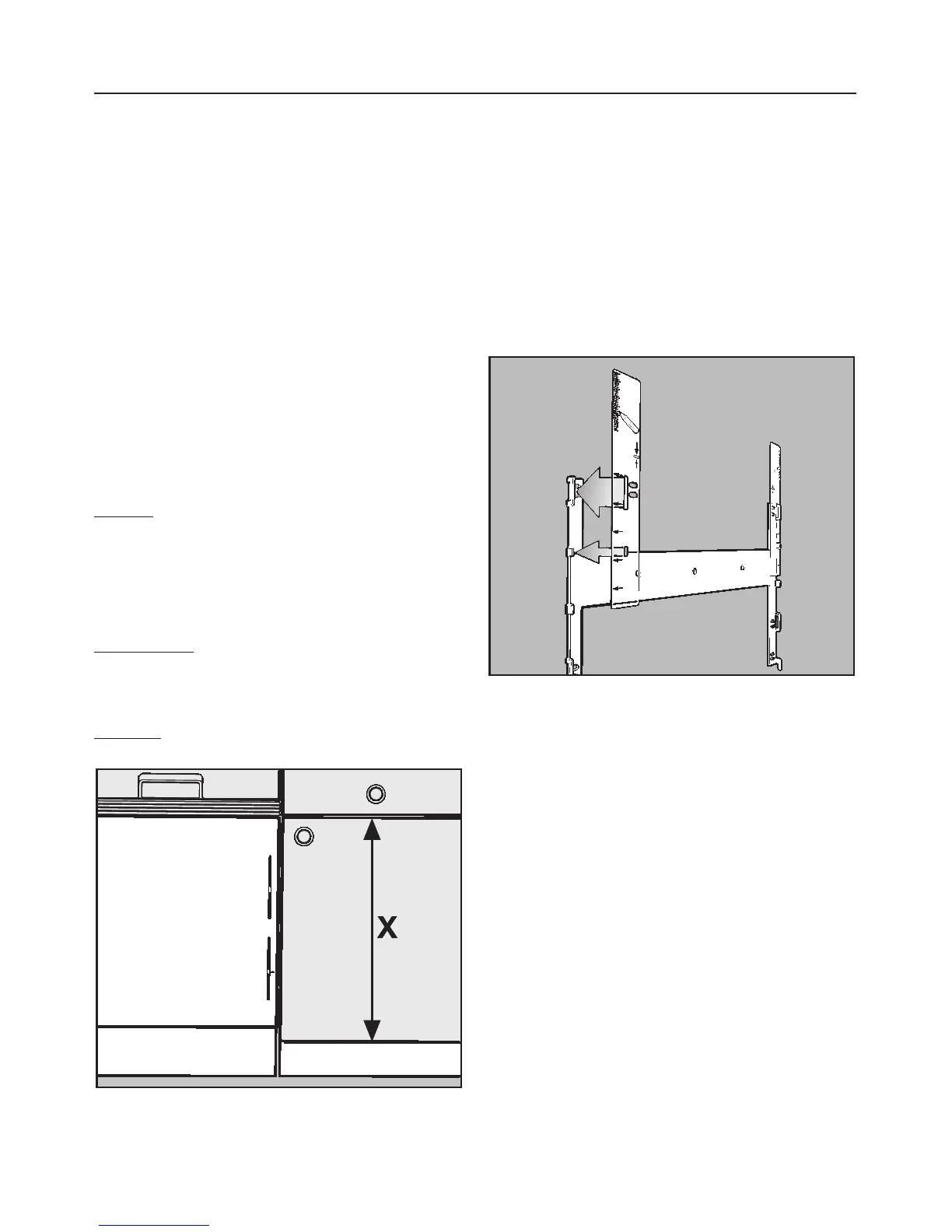

5.Fitting the (matching) door
front
Fixing brackets are already fitted on
stainless steel door fronts. These fronts
cannot be shortened.
(Go to "Fitting and securing the door
front".)
The door of a kitchen base unit (without
drawer front or fittings) is normally used
for the door front.
If a kitchen door front is not available, a
panel with the following dimensions
may be used:
Width:
depending on model
G 601 - G 632
G 801 - G 832
}
440 - 447 mm
G 636 - G 698, G 975
G 836 - G 898
}
590 - 597 mm
Thickness:
the same thickness as the neighbouring
door fronts but a minimum of 16 mm.
Height:
Dimension X
Fitting the fixing bracket
A fixing bracket must be fitted to the
rear of the door front panel. This is then
used for attaching the door front panel
to the door outer panel on the machine.
Templates are provided to position the
fixing bracket and the door front
accurately.
^ On each side of the fixing bracket
position a template with the rule
markings facing outwards.
Installing integrated "i" Dishwashers
14
