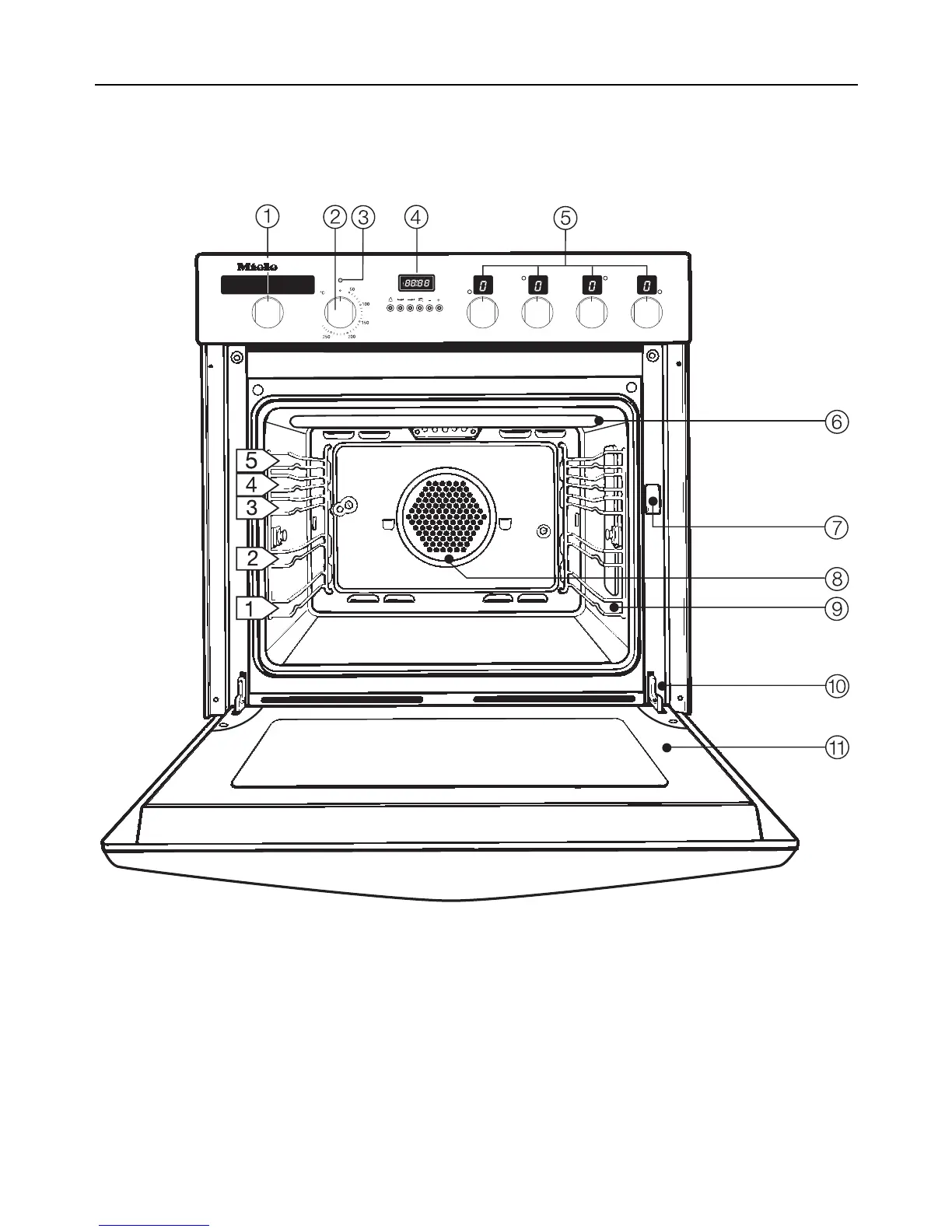

General view - H 336, H 346
"E"-Model: cooker with hob controls
Control panel *
b Oven function selector with display
for oven functions
c Oven temperature selector
d Indicator light for oven heating
e Timer
f Cooking zone controls
* depending on the model
Oven interior
g Heating element for top heat and
grilling with guard plate
h Halogen lamp access flap
i Air inlet for fan
j Runner heights 1, 2, 3, 4, 5
k Door contact switch
l Oven door
Description of the appliance
8
