Miele H 814 - Fitting Instructions

Installation - hobs
These hobs are classified in Germany
as "Y" class for heal protection).
They must be positioned so that there
is adequate ventilation. There may be
a wall at the rear and wall or tali units
at one side. On the other side howev¬
er, no unit or divider must stand higher
than the hob.
There must be a minimum distance
of 30 mm between the hob unit and
adjacent furniture (e.g. tall unit)
because of the heat radiated from
the hob.
KM 110, KM 114

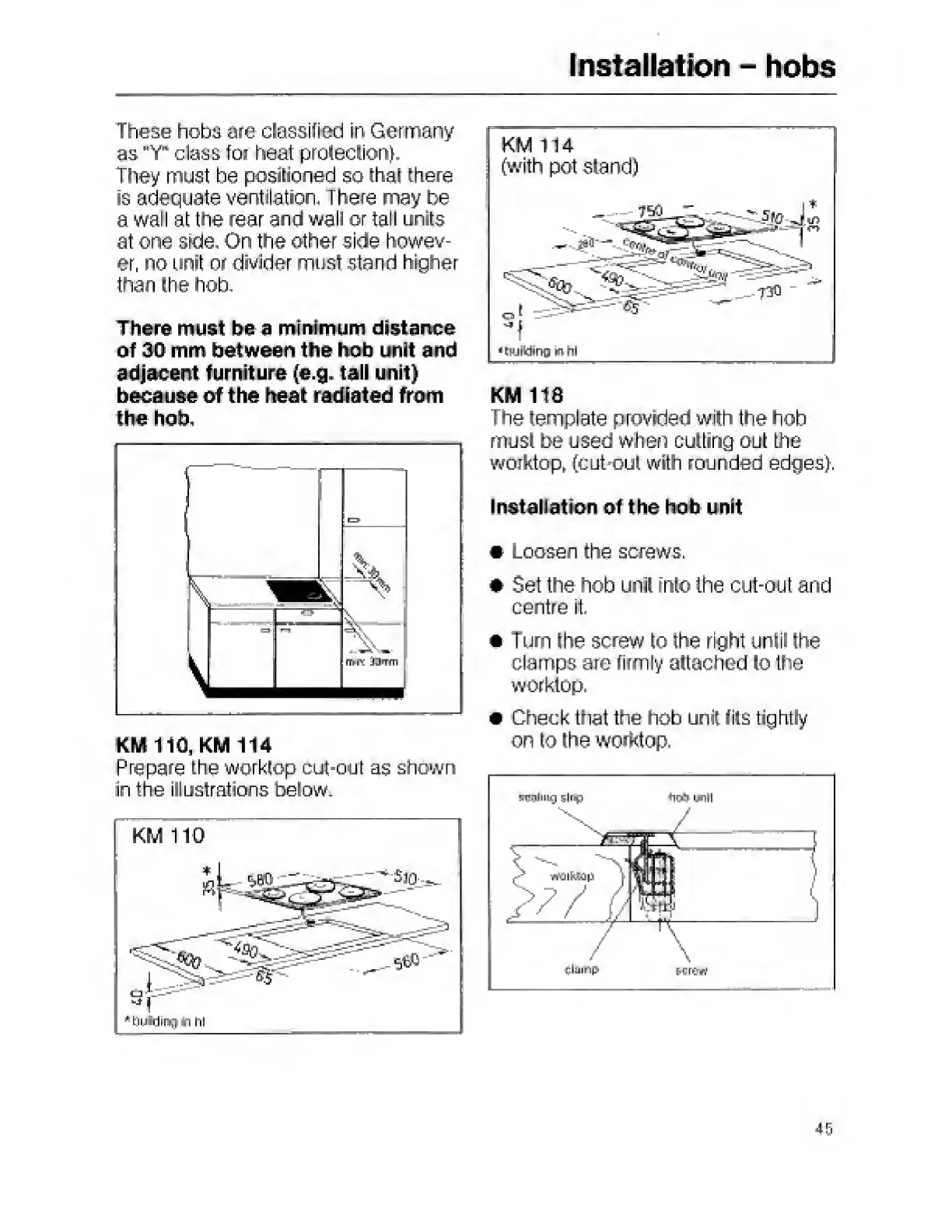

Prepare the worktop cut-out as shown
in the illustrations beiow.
KM ltd
t he template provided with the hob
must be used when cutting out the
worktop, {cut-out with rounded edges).
Installation of the hot unit
9 Loosen the screws.
• Set the hob unit into the cut-out and
centre it.
• Turn the screw to the right until the
clamps arc firmly attached to the
worktop,
• Check that the hob unit fits tightly
on to the worktop,
