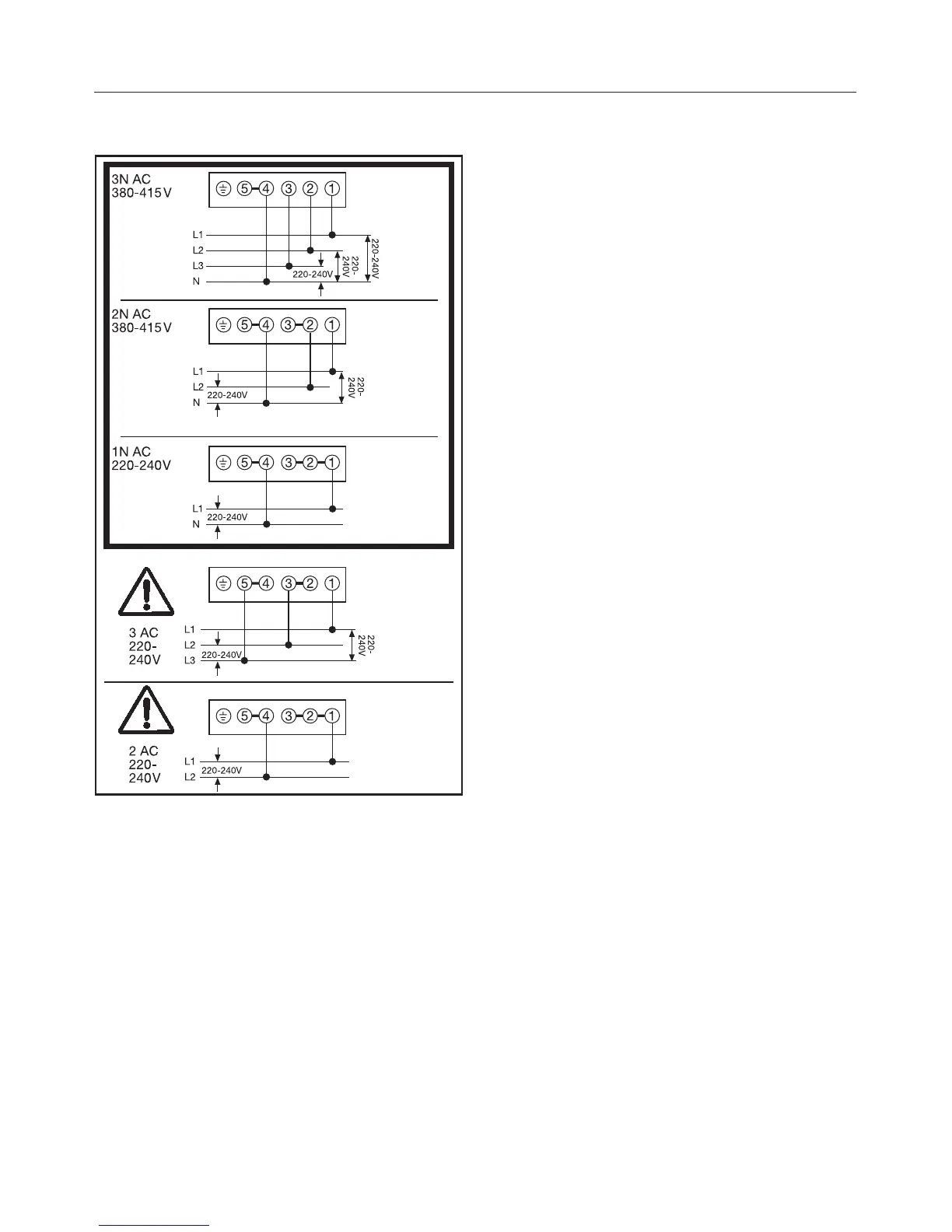

Wiring diagram Cooker
Cookers with integrated hob controls
are not supplied with a connection
cable.
The cooker must be connected to the
mains supply using a type H 05 VV-F
mains cable only, with a suitable
cross-sectional area (CSA) according
to the diagrams shown above.
Maximum connected load: see data
plate.
Possible combination hobs
Miele cookers with integrated hob
controls may only be combined with
hobs as specified by Miele for use with
that cooker.
Contact Miele or your Miele Dealer for
further information on suitable
combinations.
Oven
Ovens are supplied for connection with
an approx. 1.7 m long 3-core cable for
connection to a 230 V, 50 Hz
supply. The wires in the mains lead are
coloured as follows: Green/yellow =
earth; Blue = neutral; Brown =
live WARNING, THIS APPLIANCE
MUST BE EARTHED
For extra safety it is advisable to protect
the appliance with a suitable residual
current device (RCD).
Maximum connected load: see data
plate.
