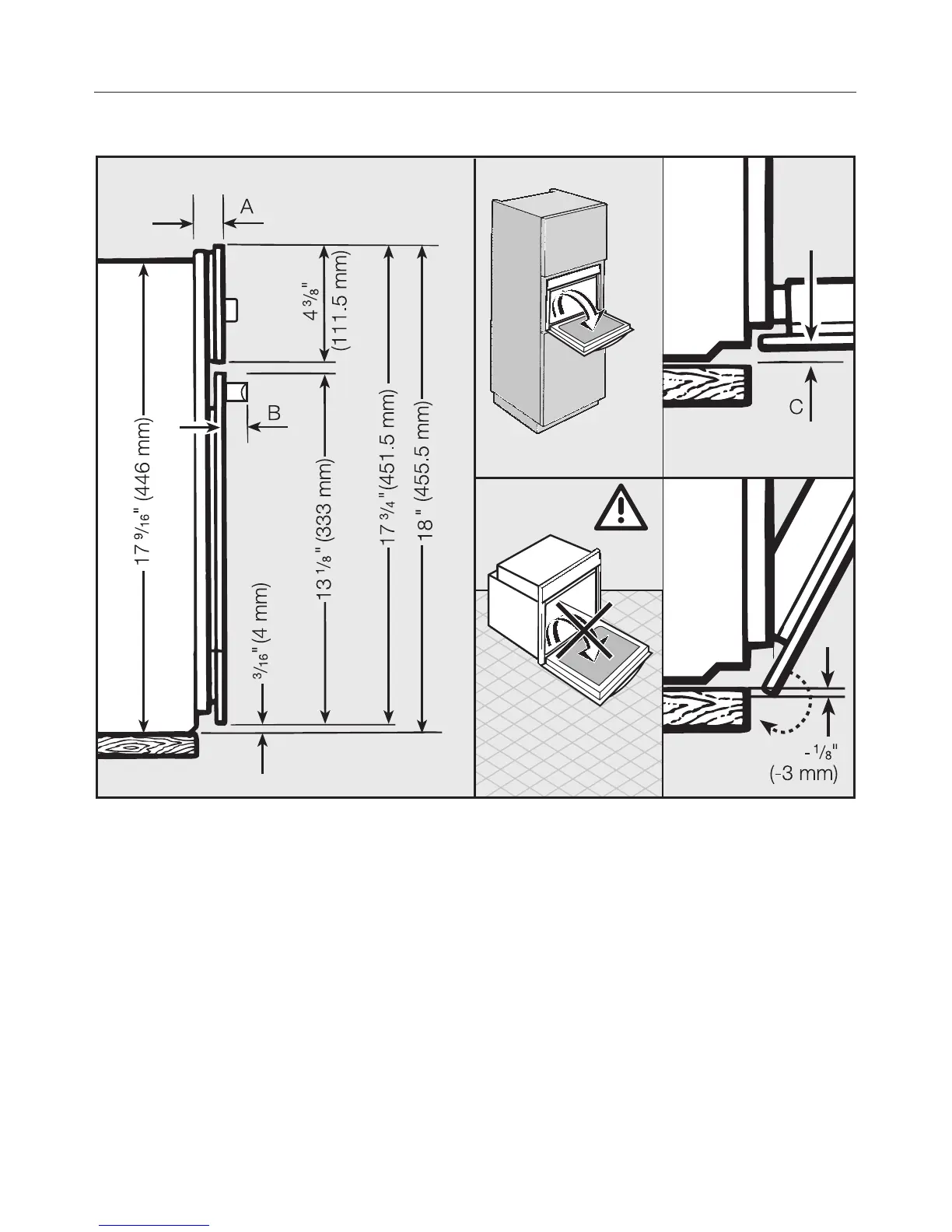

Appliance front dimensions
A 7/8"
(Appliances with glass front: 22 mm / Appliances with metal front: 23 mm)
B H 4042 BM: 1 7/8" (47.5 mm)
C Appliances with glass front: 1/16" (1.5 mm)
Appliances with metal front: 1/32" (0.5 mm)
Installation
52
