Pull bearing bush d downwards out
of hinge bracket e and refit it from
above into the hinge bracket.
^
Use a screwdriver to remove spacer
g and refit it on the opposite side.
Changing over the door handle:
^
Remove covers m at the front and
slide off to the side.
^
Unscrew handle k. Refit handle and
stoppers l on the opposite side.
^
Slide covers m into position making
sure they engage correctly.
Refitting the doors:
^ Remove plugs j from door bearing
bushes in the doors and refit on the
opposite side.
^ Hang the upper appliance door on
hinge pin c, and close the appliance
door.
^ Push middle hinge pin f from below
through hinge bracket e into the up-
per appliance door.
^
Check that the door is correctly
aligned. If necessary align it using
the long slots in hinge bracket e.
^
Hang the lower door in hinge bracket
e then close the appliance door.

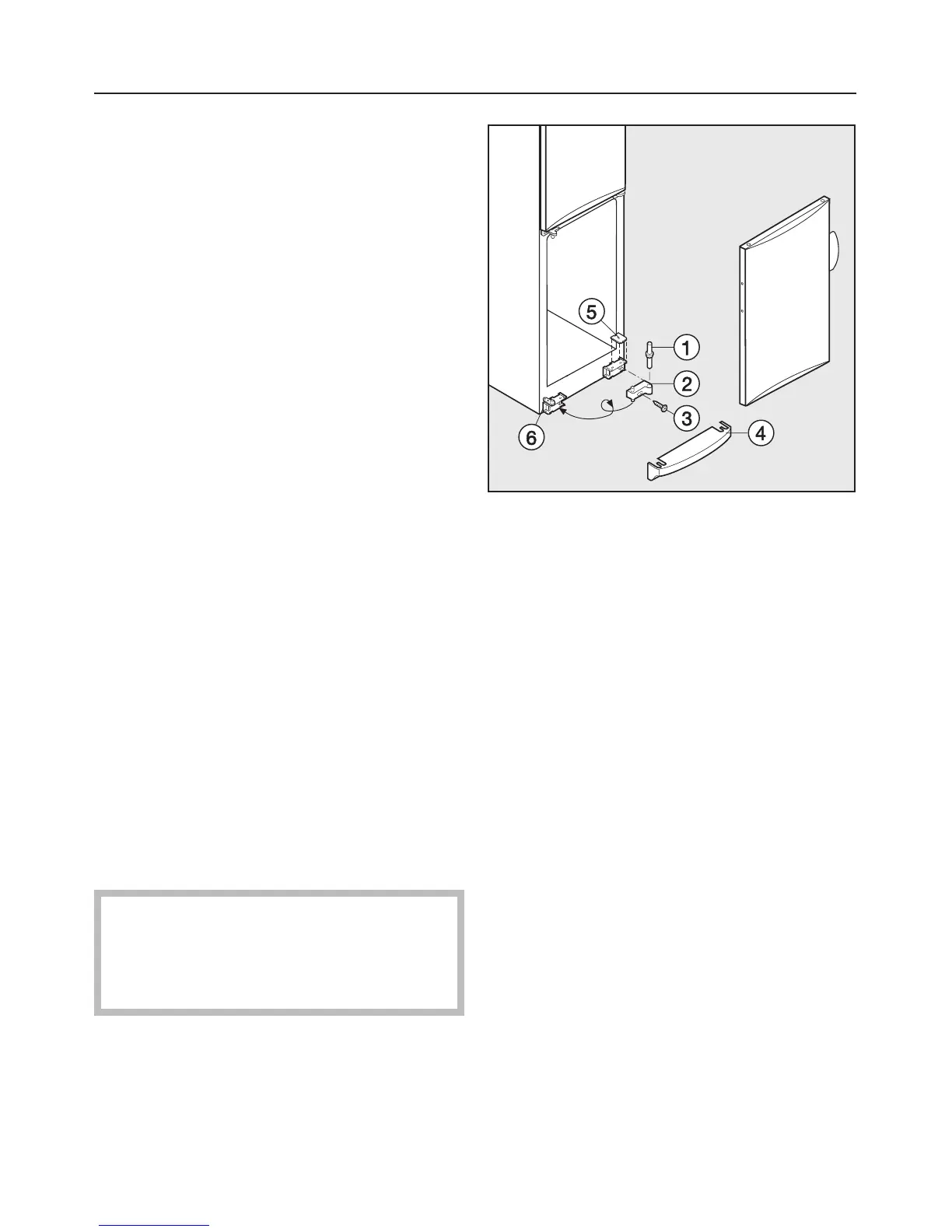

In the following illustration the lower
door is not shown in the closed posi
-
tion to make it easier to see what
happens next.
^ Turn door support b around, pull
hinge pin a out, and refit on the op-
posite side.
^ Fit both parts into hinge plate f. To
do this push hinge pin a through
hinge plate f into door support b.
Swing door support out, push up-
wards and re-assemble with screw
c.
^
Align the lower door with the appli
-
ance housing using the long slot in
hinge plate f. Then tighten screw c.
^
Refit plinth fascia d pushing it firmly
into position.
^
With the lower door open, secure
cover e to the front of the plinth fas
-
cia.
Changing the door hinging
39
