To change the jets and needle valves
the appliance has to be opened by
removing the burners.

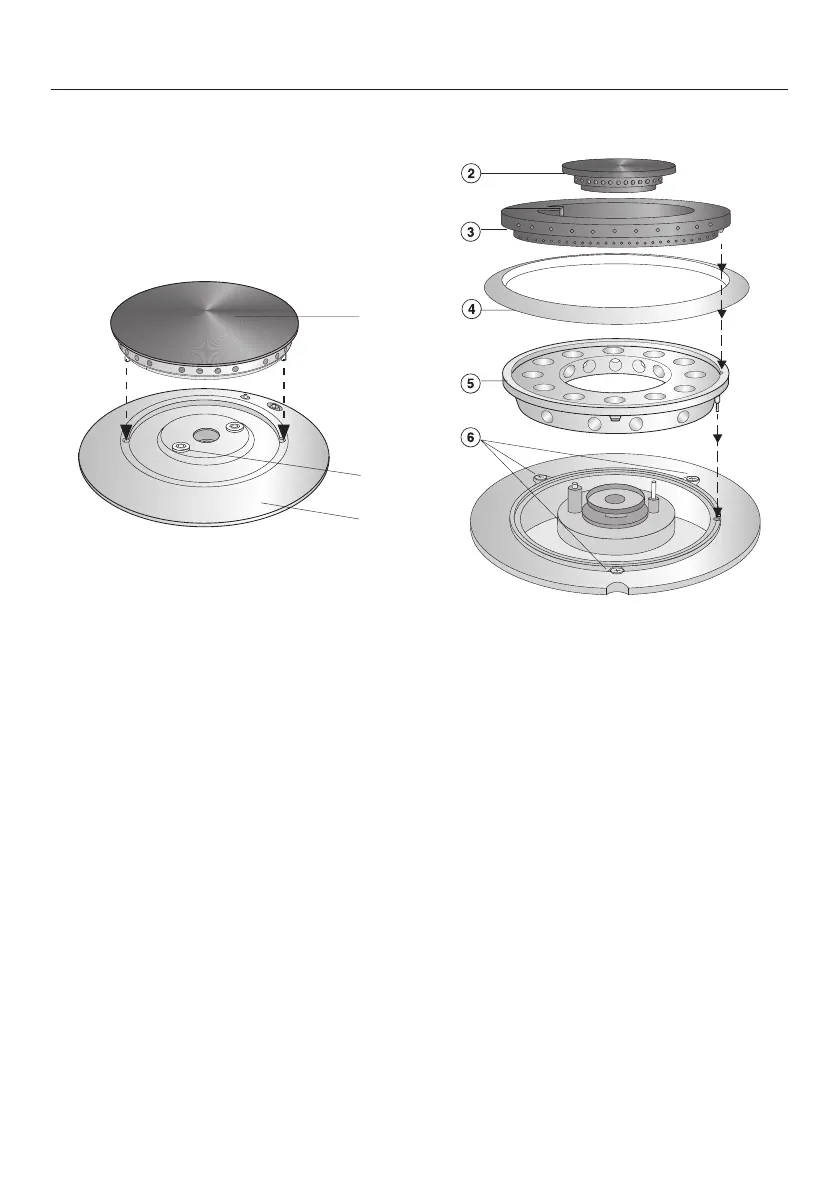

Normal/Fast burner
^ Remove the grates and the burner
cap, b.
^ Loosen the screws, f, and take off
the burner base, g.
Wok burner
^ Remove the grates, the small burner
cap, b, the large burner cap, c, the
burner ring, d, and the burner base,
e.
^
Loosen the screws, f.
^
When all burners have been taken
off, pull all control knobs off of the
cooktop.
Now the cooktop surface can be taken
off.
Converting KM 342 / 344
8
b
f
g
