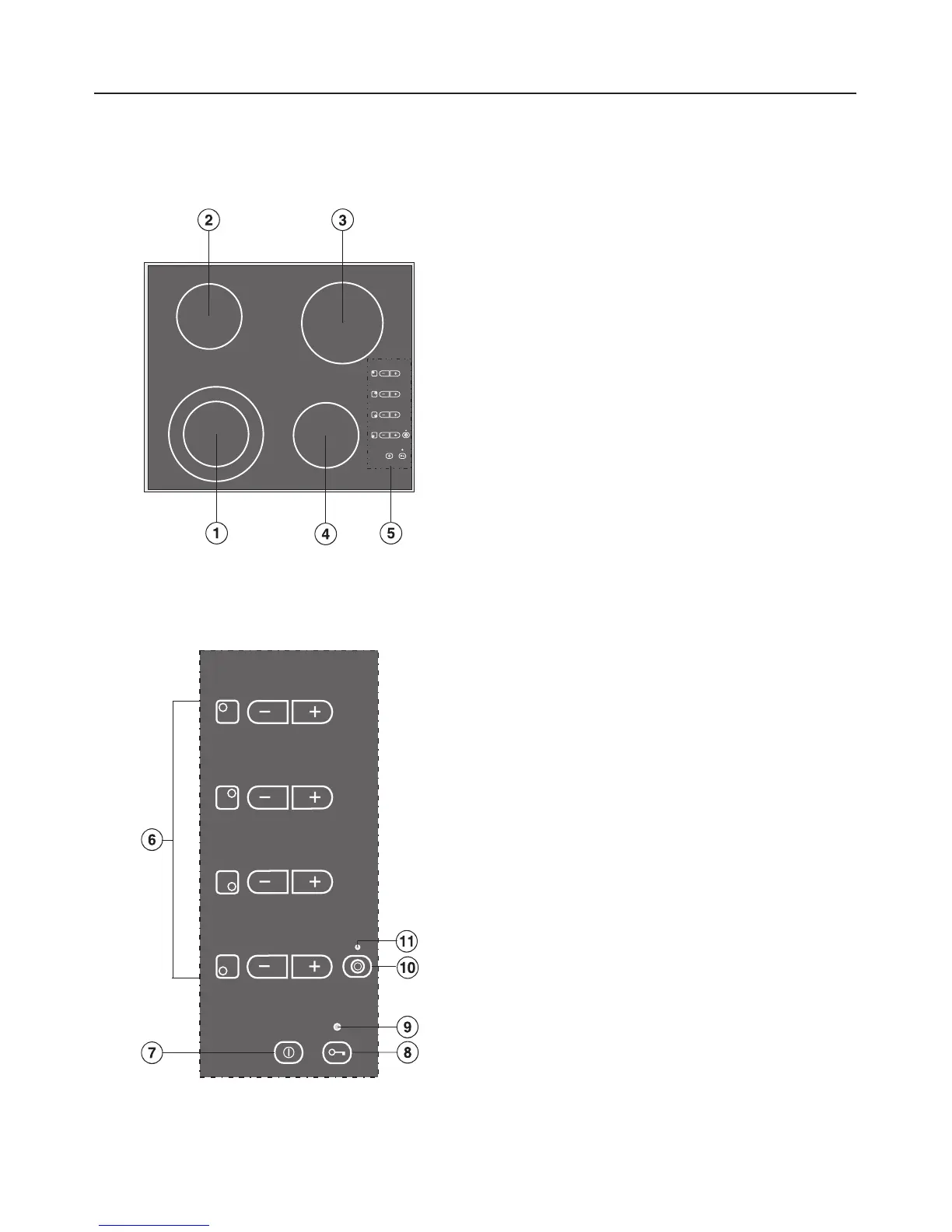

KM 461 / KM 464 / KM 466
Ceramic hob
Control area
a Double circle zone
bcd Single circle zone
e Control area
f Cooking zone controls and displays
g Hob ON/OFF
h Safety lock
j Switching on the outer circle of the
double circle zone
Indicator lights for:
i Safety lock
k Switching on the outer circle of the
double circle zone
Guide to the appliance
5
