Miele KM 6629 - Building-in Dimensions: KM 6639;6839

Flush-fitted hobs
68

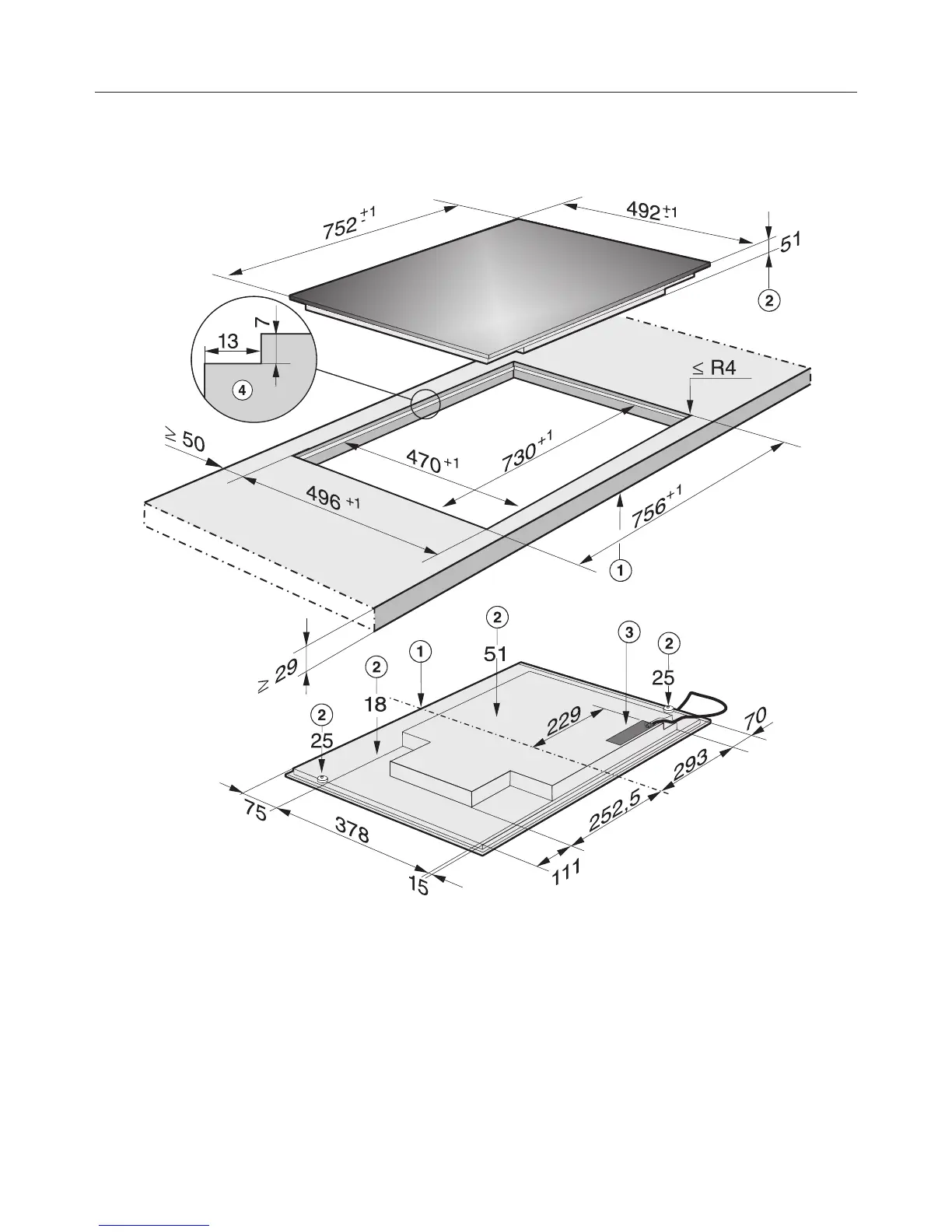

Building-in dimensions
KM 6639 / KM 6839
a
Front
b
Appliance height
c
Mains connection box
d
Stepped cut-out
The mains connection cable (1440 mm long) is supplied separately with the hob.
Please observe the detailed diagrams for cut-out dimensions in natural stone
worktops.
