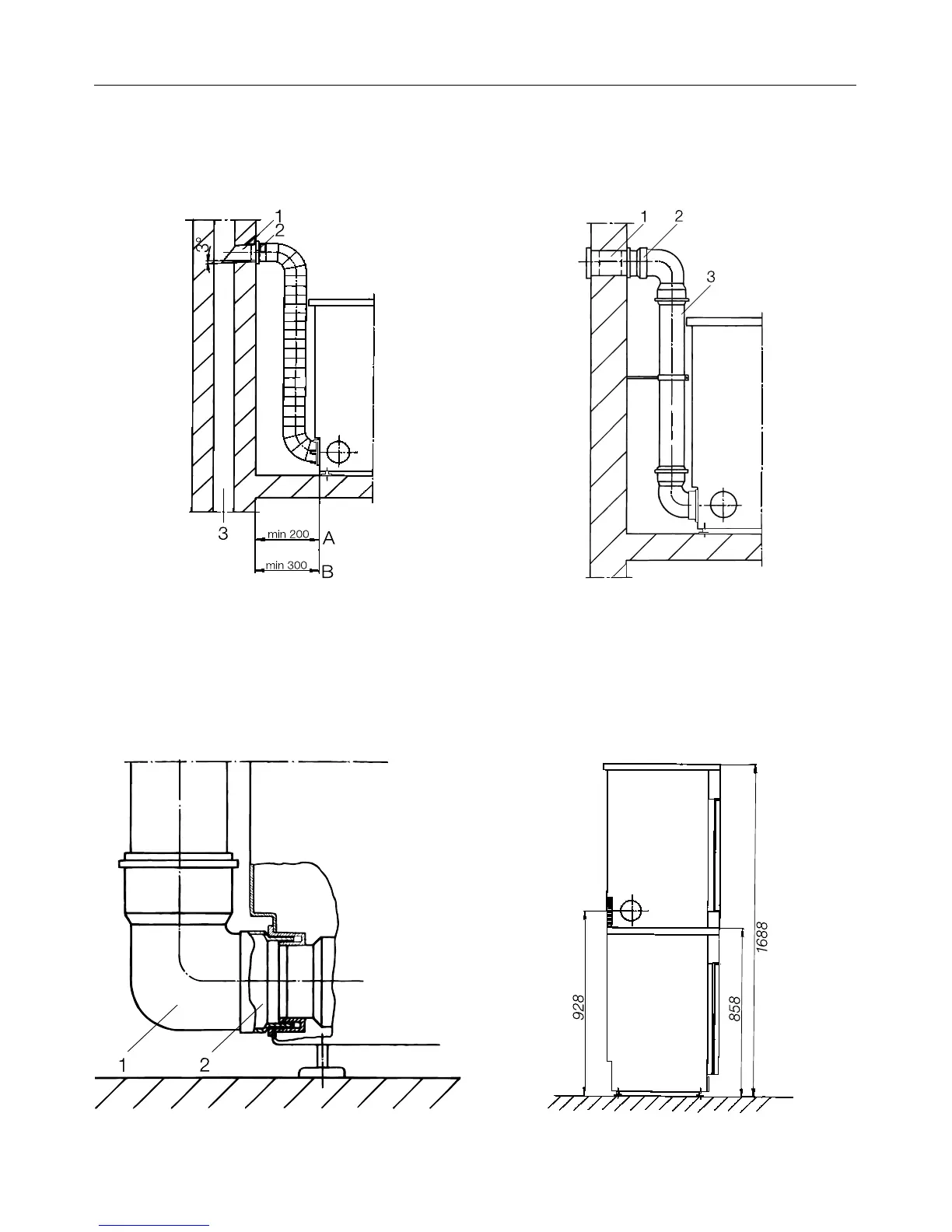

Installation - example 1
Upward ducting via flexible hose to an exhaust
flue (side view).
1. Wall pipe A. = Wire spiral-wound hose
2. Connecting pipe B. = Flexible ducting
3. Flue insulated against damp
Installation - example 3
Connecting plastic vent pipe to the tumble dryer
(side view).
1. Plastic piping 2. Connecting piece between
exhaust outlet and plastic piping
Installation - example 2
Upward ducting via plastic piping to wall vent kit
(side view).
1. Wall pipe
2. Connecting piece
3. Plastic piping (outer diameter 110 mm)
Installation - example 4
Height of venting outlet for washer/dryer stack.
Installation - venting
32
