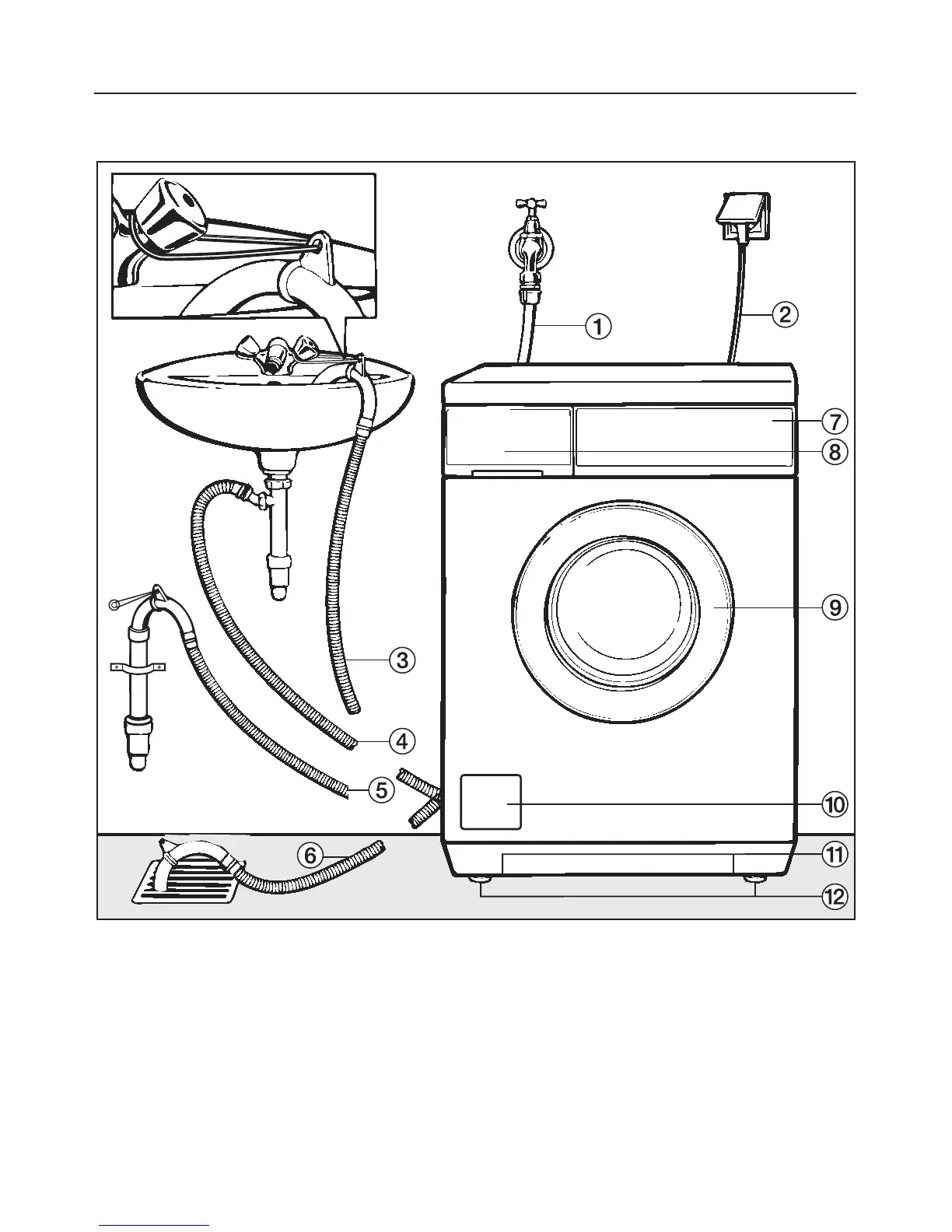

Front view
a Inlet hose (tested to withstand
pressure of at least 70 bar)
b Electricity supply cable
c - f Flexible drain hose (with
detachable swivel elbow)
g Fascia panel with controls
h Detergent dispenser drawer
i Drum door
j Flap for fluff filter, drain pump and
emergency release
k Handle recesses for moving the
machine
l Four height adjustable feet
Installation and connection
45
