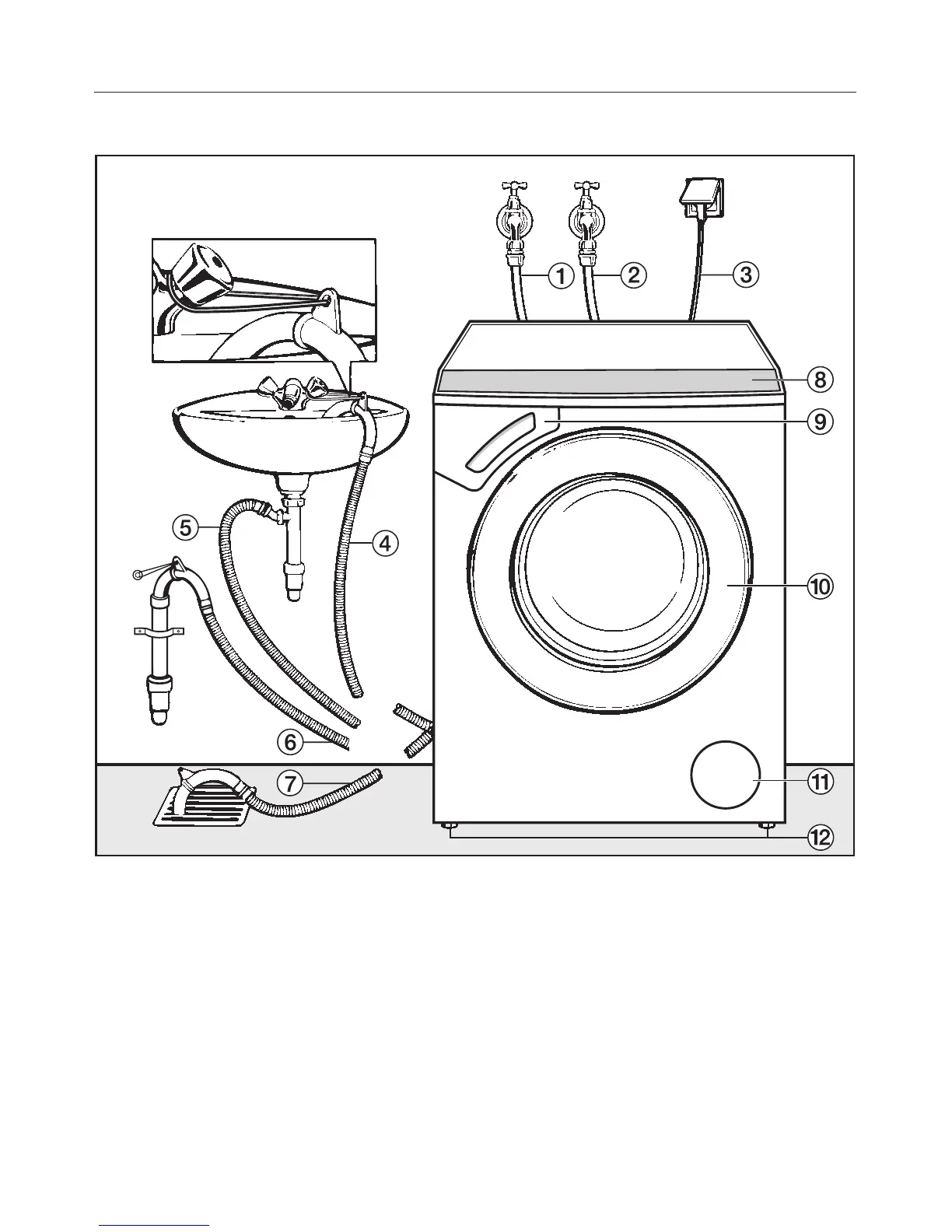

Front view
a High pressure intake hose,
red mark for hot water
b High pressure intake hose,
blue mark for cold water
c Power cord
d - g Flexible drain hose with
detachable swivel elbow (drain
options shown)
h Control panel
i Detergent dispenser drawer and
door opener in case of power failure
j Drum door
k Access panel to lint trap and drain
pump
l Four height-adjustable feet
Installation
42
