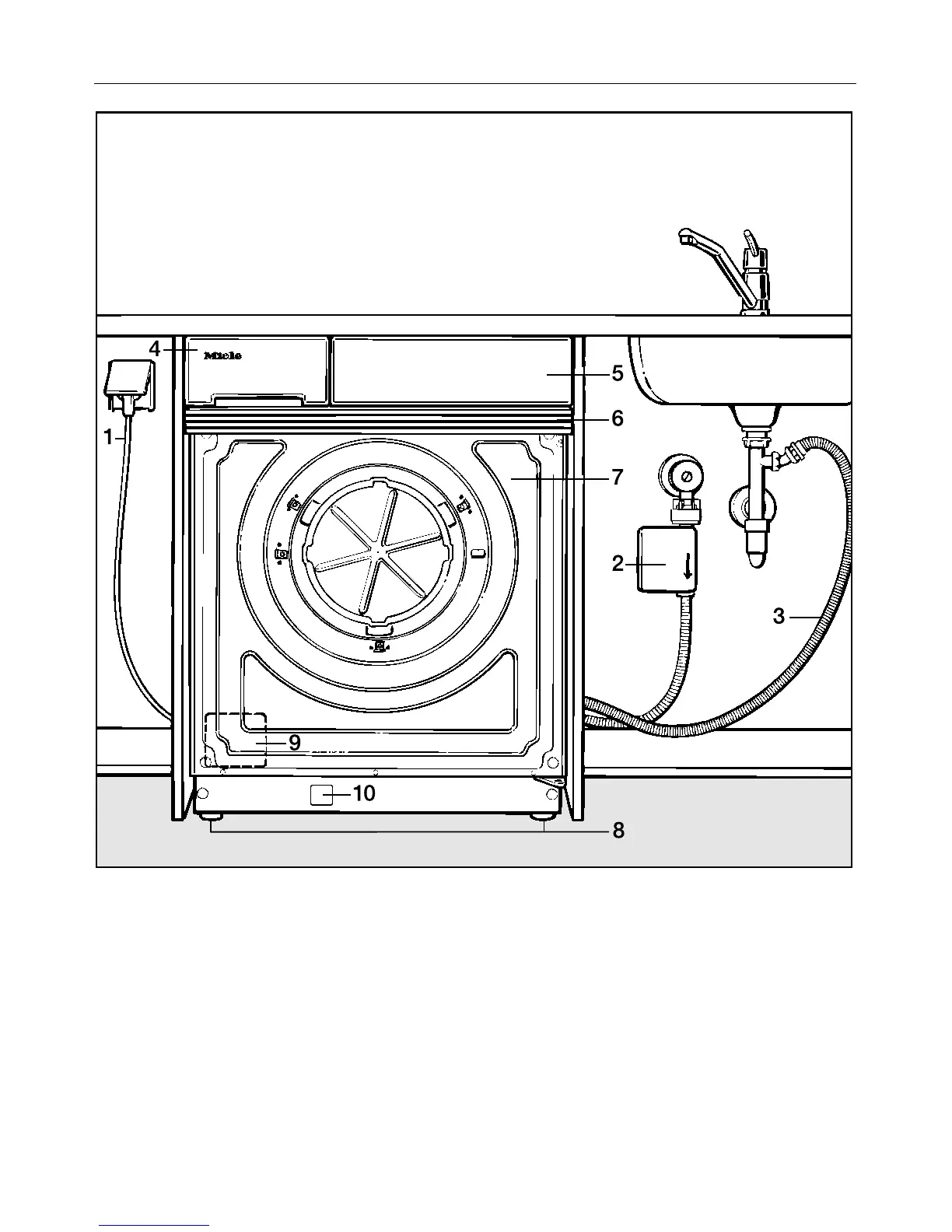

Guide to the machine
1 Electric supply cable
2 Inlet hose with “Waterproof” system
3 Flexible drain hose (with detachable
swivel elbow)
4 Detergent dispenser drawer
5 Facia panel with controls
6 Adapter strips
7 Door interior plate with fixing points for
a front panel
8 four height adjustable feet
9 Panel for access to fluff filter and drain
pump
10 Panel for emergency drainage and
emergency door release
