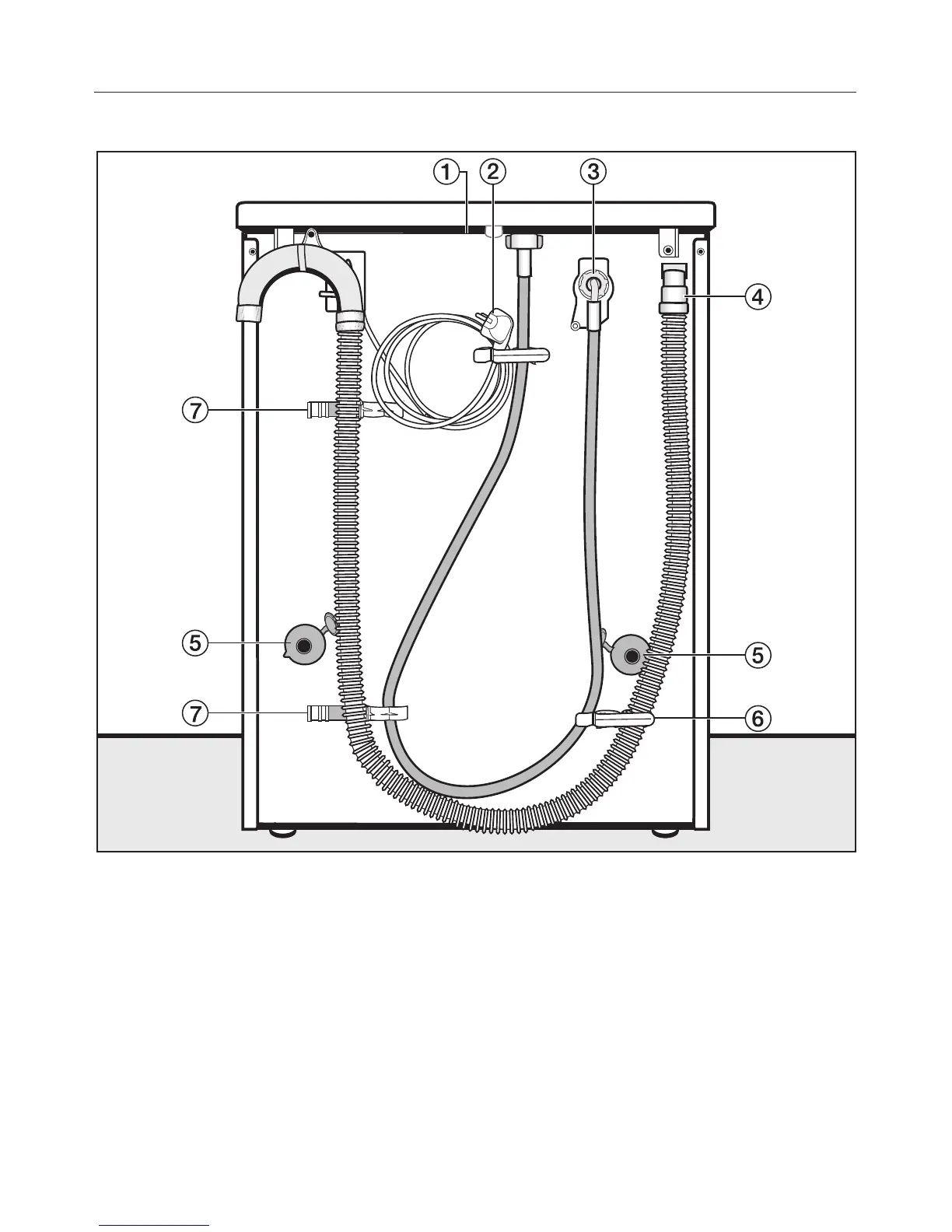

Rear view
a Protruding lid for holding when
moving the machine
b Electricity supply cable
c Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
d Drain hose
e Transit bar covers
f Retaining clip for inlet hose and drain
hose
g Retaining clips for transit bars when
removed
Installation and connection
48
