Drainage
The suds are drained through a drain
pump with a 1m delivery head. For the
water to drain freely, the hose must be
installed free of kinks.
If required, the hose can be extended to
a length of up to 5m.
For a delivery head of more than 1m
(up to a max. of 1.8m) a replacement
drain pump will need to be fitted.
Please contact Miele for advice.
For a delivery head of 1.8 m the hose
can be extended to a length of up to
2.5m.
The necessary parts can be purchased
from Miele.
Drain hose connection options
1. Directed into a laundry trough or tub
or into the sud-saver pipe of a
laundry trough or tub.
Please note:
– Hook the hose over the edge and
secure it.
– Make sure that the water can drain
away freely without hindrance.
Otherwise there is a risk of water
overflowing or of some of the
drained water being sucked back
into the machine.
2. Connected securely to a trapped
waste pipe.
3. Connected securely to a floor drain
(gully).
Please note:

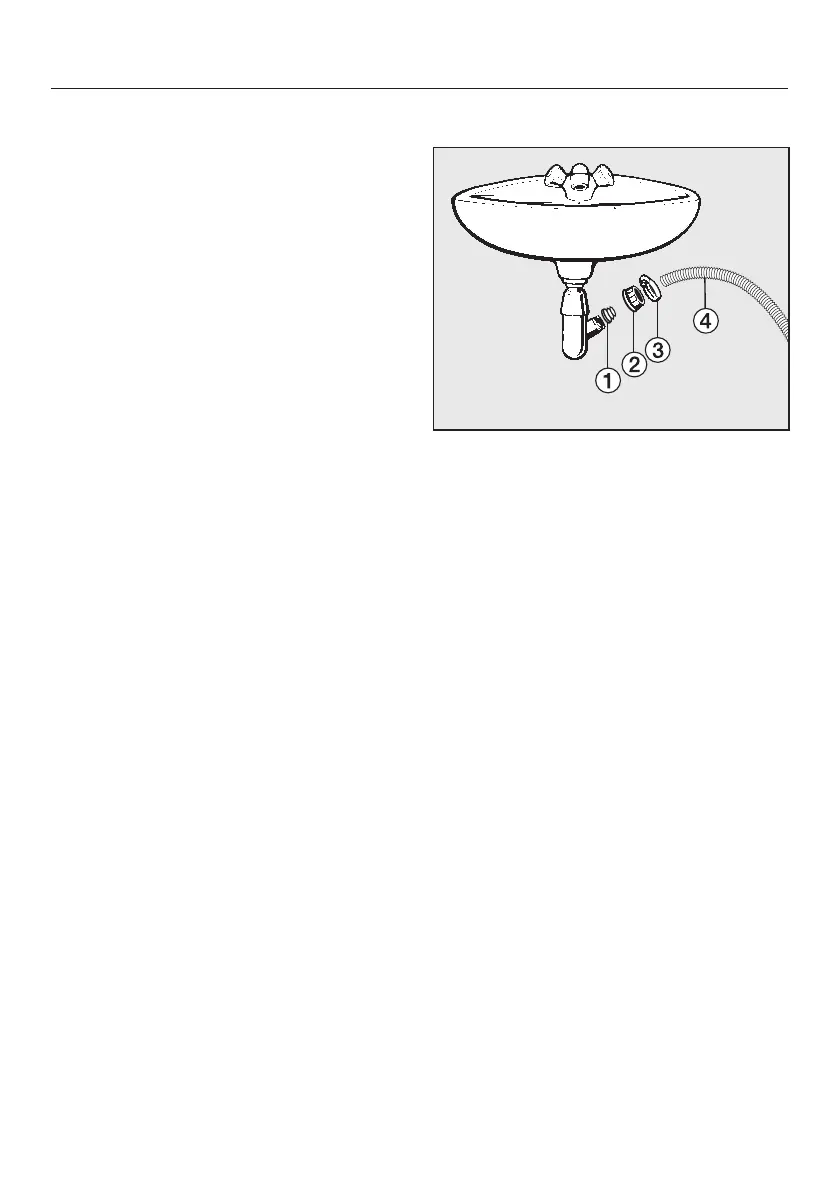

a
Adapter
b
Nut
c
Hose clip
d
End of the hose
 Fit the adapter  to the sink drain
outlet using the nut .
 Attach the end of the hose  to the
adapter .
 Use a screwdriver to tighten the hose
clip  up close to the nut.
