COMPONENT LIST
TECHNICAL DOCUMENTATION 15

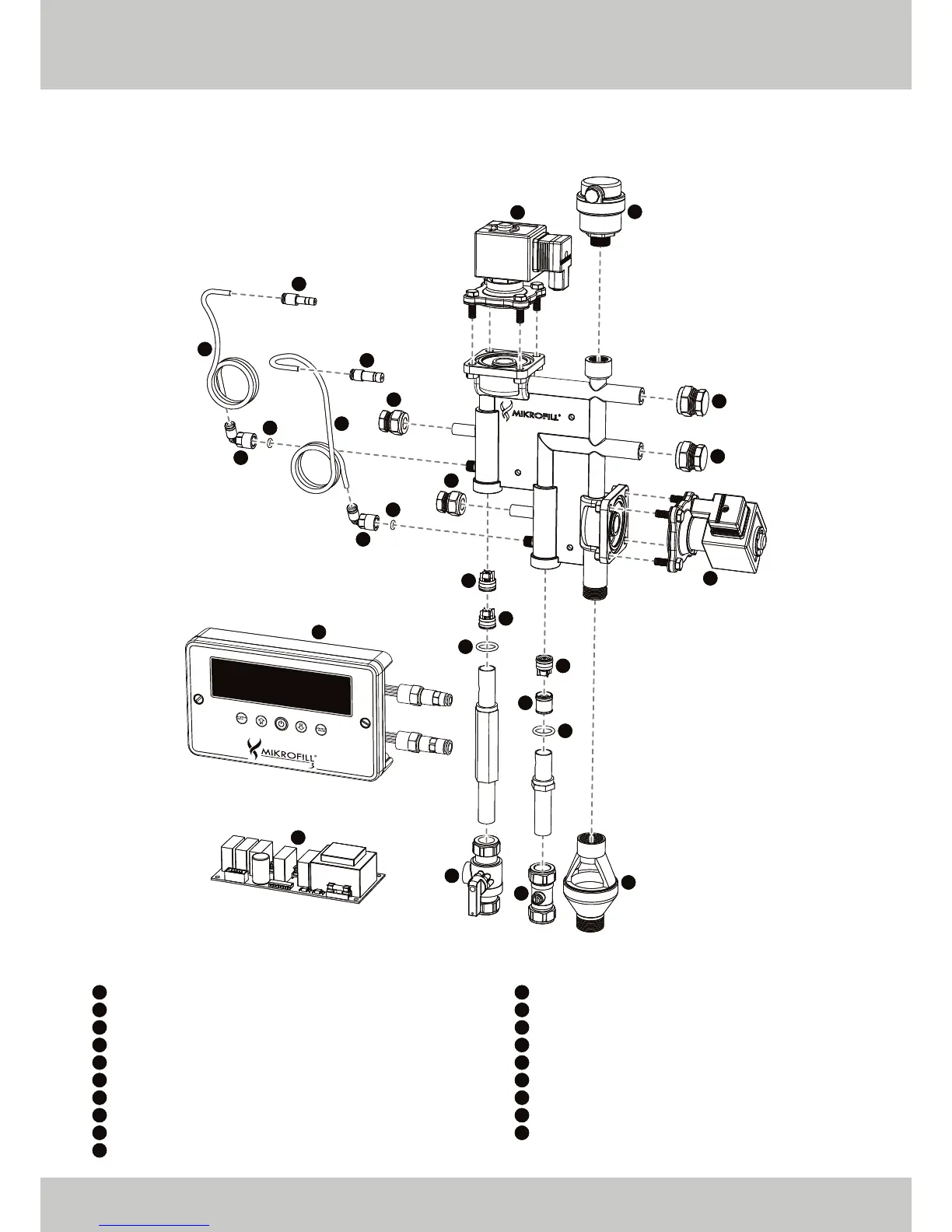

Any components within the Mikrofill 3 that may require replacing have been listed in this section, along with
their respective part codes. If any part needs replacing which is not listed here, please contact our technical
department on 03452 60 60 20 for assistance.
“(PART CODE) PART NAME”:
01
02
03
04
05
06
07
08
09
10
(EFD000005)
(EFD000006)
(EFD000007)
(MK3000009)
(MK3000010)
(MK3000053)
(EFD000012)
(MK3000014)
(MK3000015)
(MK3000033)
¾” TUNDISH (½” FEMALE x ¾” MALE)
AIR VENT VALVE (⅜” MALE)
BALLOFIX VALVE - INLET (15mm COMPRESSION)
CHECK VALVE ( Ø 15mm )
CHECK VALVE WITH FLOW REGULATOR ( Ø 15mm )
CONTROLS ASSEMBLY WITH SENSORS
ISOLATION VALVE - OUTLET (15mm COMPRESSION)
NORMALLY CLOSED SOLENOID VALVE
NORMALLY OPEN SOLENOID VALVE
O-RING (NITRILE) (3mm I.D. x 3mm C.S.)
11
12
13
14
15
16
17
18
19
(MK3000034)
(MK3000017)
(MK3000028)
(MK3000029)
(MK3000019)
(MK3000020)
(MK3000021)
(MK3000024)
(MK3000025)
O-RING (NITRILE) (14.5mm I.D. x 3mm C.S.)
PCB (POWER)
PIPE - CAPILLARY - INLET (COPPER) ( Ø 4mm)
PIPE - CAPILLARY - OUTLET (COPPER) ( Ø 4mm)
PUSH FIT - ELBOW ( Ø 4mm FEMALE x ⅛” FEMALE )
PUSH FIT - REDUCER ( Ø 6mm MALE x Ø 4mm FEMALE )
PUSH FIT - REDUCER ( Ø 8mm MALE x Ø 4mm FEMALE )
STOP END (BRASS) (10mm COMPRESSION)
STOP END (BRASS) (15mm COMPRESSION)
16
13
10
15
17
18
14
10
15
18
08
02
19
19
09
04
04
05
04
11
11
03
07
01
06
12
