TECHNICAL DATA
TECHNICAL DOCUMENTATION 07

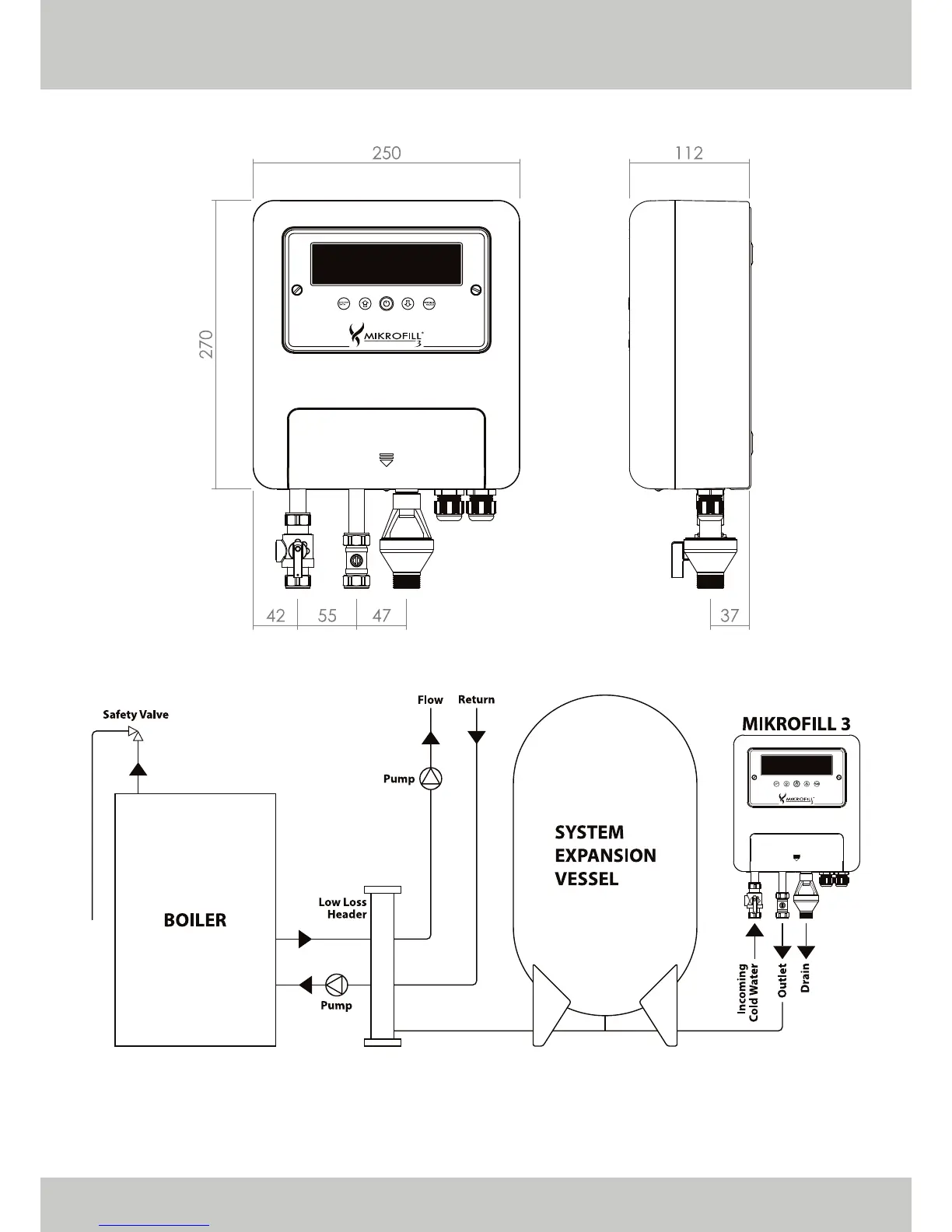

DIMENSIONS (IN MILLIMETRES)
DIAGRAM OF A TYPICAL INSTALLATION
Please note that for the purpose of clarity, system valves are not shown. For systems exceeding 90°C contact
our technical department on 03452 60 60 20 for advice.
Further installation guidelines can be found on page 05 of this technical documentation.
