Mikrofill 3 - Wall Mounting Plate Dimensions for Fixing

TECHNICAL DATA
08 TECHNICAL DOCUMENTATION

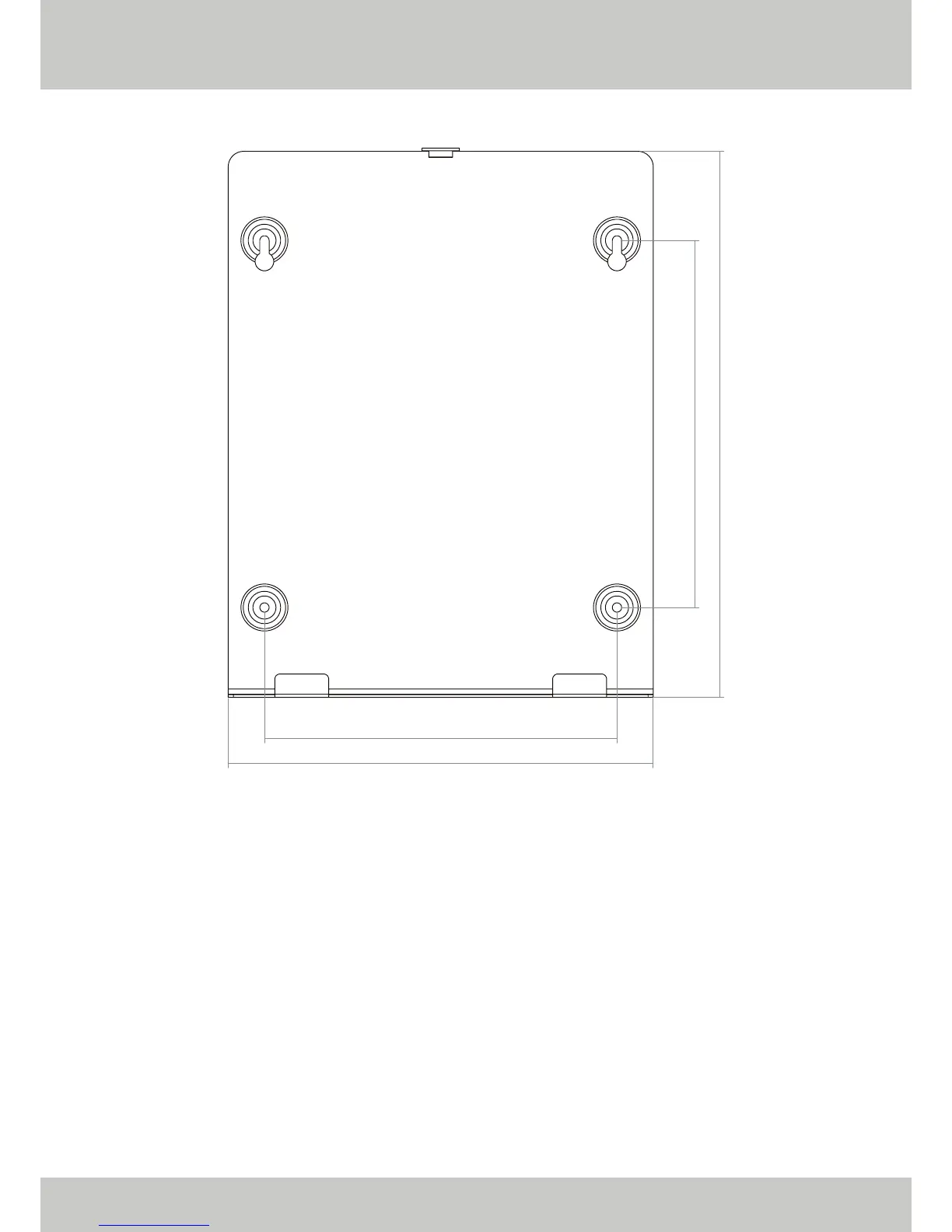

WALL MOUNTING PLATE DIMENSIONS FOR FIXING (IN MILLIMETRES)
• A maximum size of No. 8 screws or M4 bolts are to be used.
• A minimum of 25mm clearance either side of the unit is required.
• A minimum of 250mm clearance above the unit is required.
• The unit must be fitted on a sound, solid surface.
262
205
170
177
