Use provided screws to secure the device to the wall;
Based on the wall material you can use a drill bit and provided dowels.
The device has no protection from water contamination, please ensure the placement of the device in a dry and ventilated environment.
We recommend Cat6 cables for our devices.
The mounting and configuration of this device should be done by a qualified person.
Rackmount

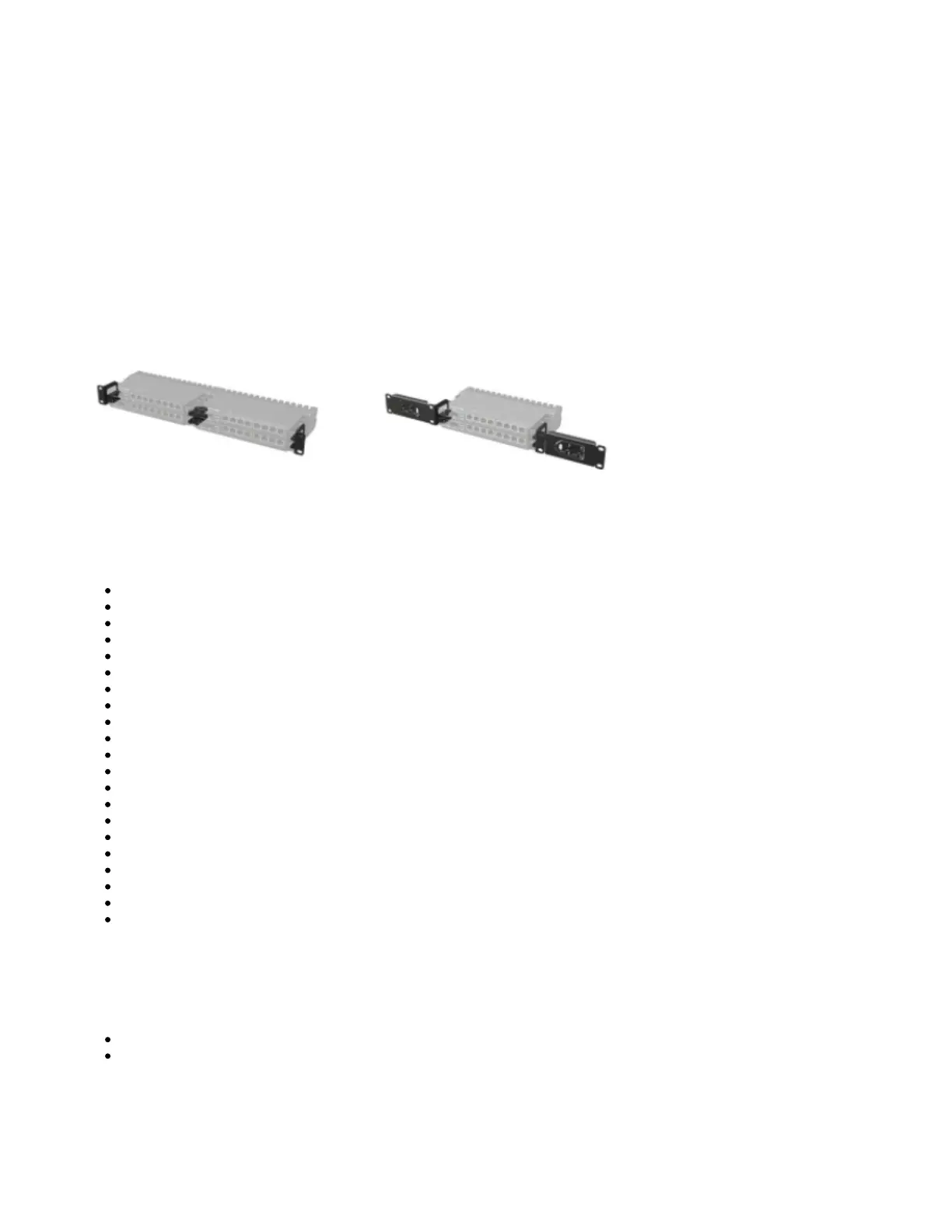

If desired placement is rackmount, additional brackets can be purchased separately:
RB5009/L009 rackmount kit K-79
Extension slots and ports
Product code L009UiGS-2HaxD-IN
CPU IPQ-5018 800 MHz
CPU architecture ARM
CPU core count 2
Size of RAM 512 MB
RAM type DDR3L
Storage 128 MB, NAND
Number of 1G Ethernet ports 8
Number of 2.5G SFP ports 1
USB port 1 (3.0 type A)
PoE-in Ether1
PoE-out Ether8
Serial console port RJ45
Operating system RouterOS (License level 5)
Switch chip model 88E6190
Wireless interface model IPQ-5018 (2.4 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain
Wireless antenna max gain 2.4 GHz (4 dBi)
Dimensions 220 x 125 x 22 mm
Operating temperature -40°C to +70°C
IP 20
Buttons and jumpers
The RouterBOOT reset button has the following functions. Press the button and apply the power, then:
Release the button when the green LED starts flashing, to reset the RouterOS configuration to defaults.
Press the Reset button and power on your device (wait until the USR/SFP led is blinking then stable "On", and when the USR/SFP led is "Off" -
release the Reset button) - the device is booting in bootp mode to reinstall RouterOS using Netinstall. (required for reinstalling RouterOS over the
network using Ether1).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
